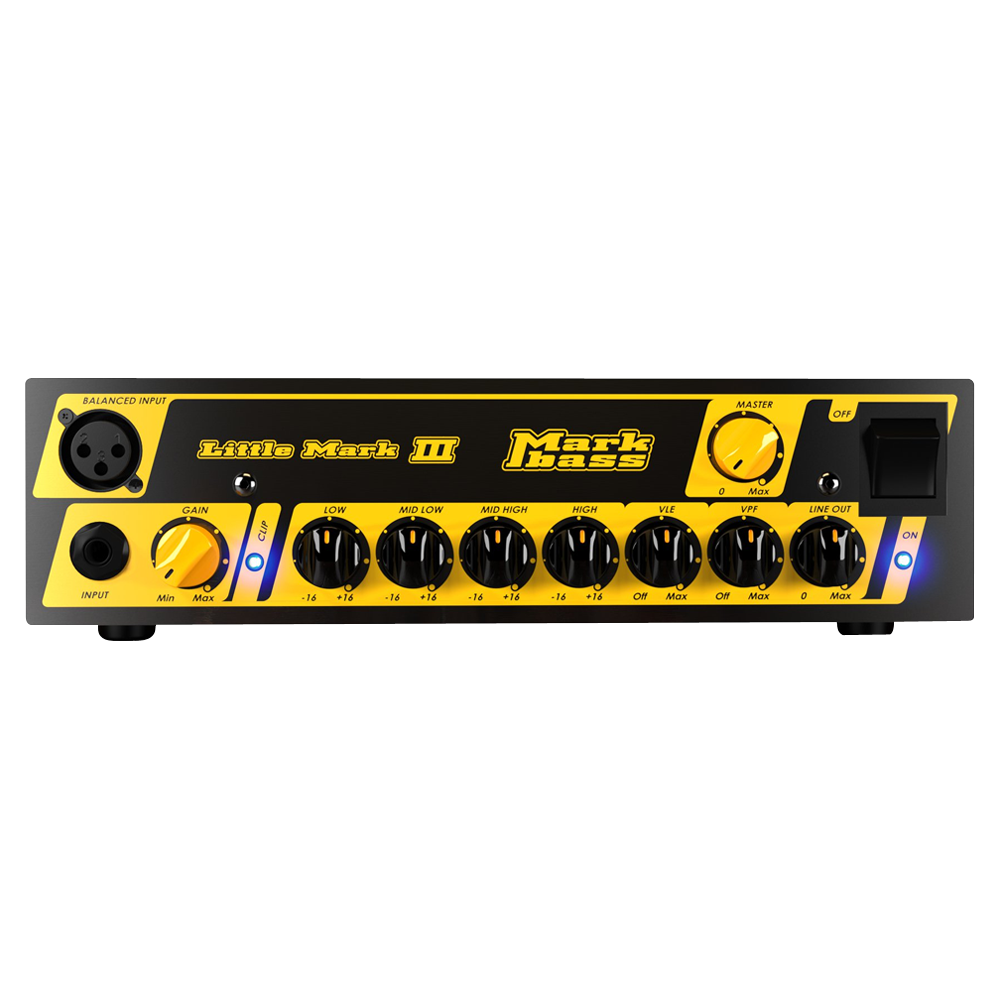

Mark Bass Heads Little Mark III 500 Watts MBH110020Z

The Little Mark III's solid-state preamp has a warm and natural sound, and faithfully reproduces the true tone of your instrument. The 500-watt Markbass power amp (Markbass Proprietary Technology) supplies impeccable bass frequency reproduction. The new DI output features a pre-post EQ switch and output level control, so you can optimize the signal you send to the mixer or recording unit.

INPUTS

• INPUT: impedance 500 Kohm, max. voltage 15 Vpp
• BALANCED INPUT (XLR): impedance 100 Kohm, max. voltage 25 Vpp
• EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS

• GAIN: -60 dB to +23 dB range
• MASTER VOLUME
• LINE OUT LEVEL
• GROUND LIFT (switch on rear panel)
• PRE/POST EQ (switch on rear panel)

EQUALIZATION

• LOW: center frequency: 40 Hz; level: ±16 dB
• LOW MID: center frequency: 360 Hz, level: ±16 dB
• HIGH MID: center frequency: 800 Hz, level: ±16 dB
• HIGH: center frequency: 10 kHz, level: ±16 dB
• VPF (Variable Pre-shape Filter): center frequency 380 Hz
• VLE (Vintage Loudspeaker Emulator): frequency range 250 Hz-20 kHz

OUTPUTS

• LINE OUT: balanced XLR, max. voltage 20 Vpp
• EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• SPEAKER OUT: speakon/1/4" combo, 1/4"

OTHER

• WEIGHT: 5.07 lbs / 2.3 Kg
• WIDTH: 10.87 in. / 27.6 cm
• DEPTH: 9.84 in. / 25 cm
• HEIGHT: 3.27 in. / 8.3 cm
• OUTPUT POWER: 500W RMS @ 4 ohms / 300W RMS @ 8 ohms
• POWER REQUIREMENT:100/120V; 230V; 240V - 50/60Hz (Voltage is factory preset according to region of sale)
