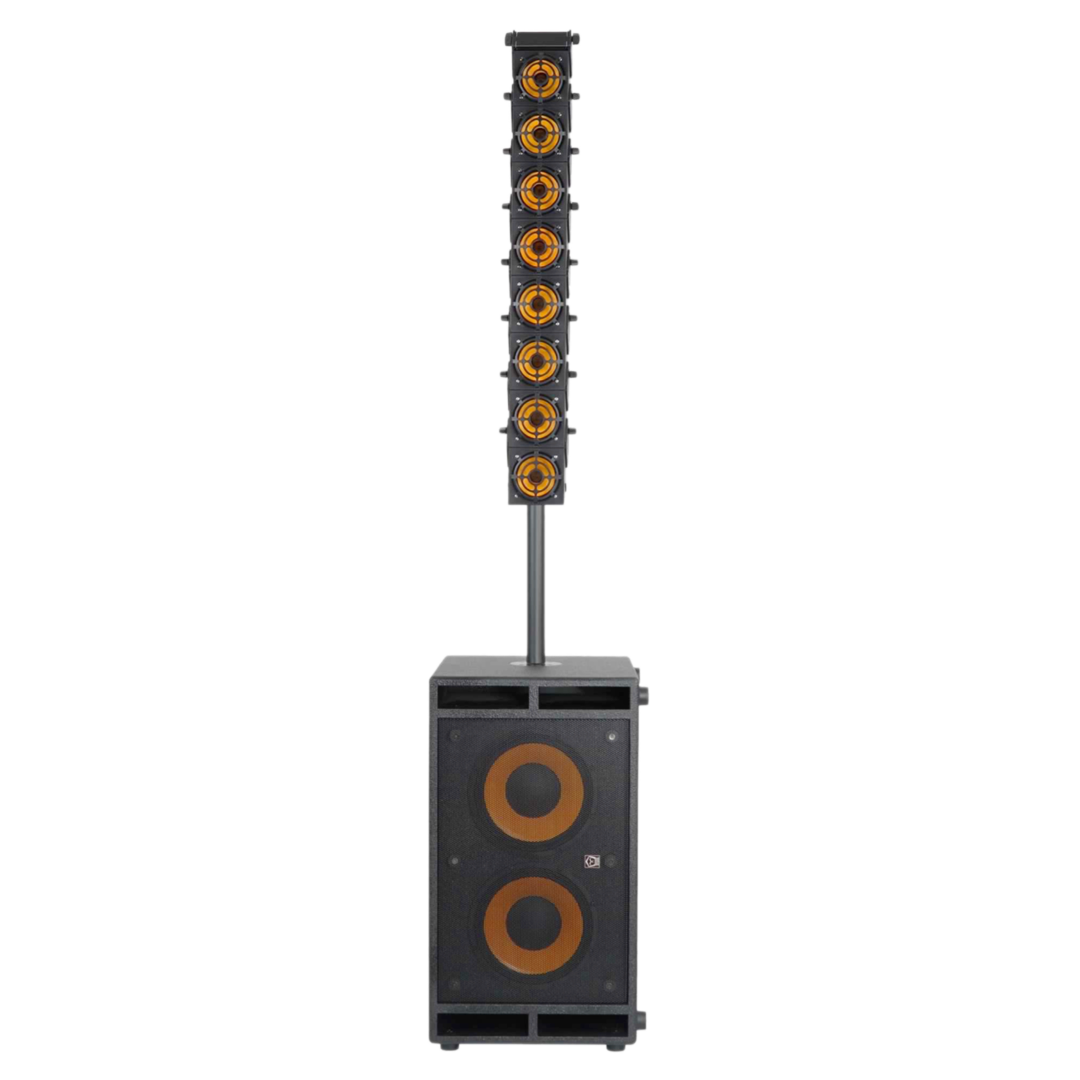

AUDIO CHAIN SYSTEM
POWERFUL, VERSATILE and PORTABLE ARRAY SYSTEM
The AUDIO CHAIN is an innovative portable PA system-concept with outstanding, accurate sound! Chose the AUDIO CHAIN System that fits your needs, whatever the application: from small to large audiences, any kind of event or permanet installation. Let the audience hear your Music ai its Best! Always hear everyting, everywhere in the venue!
Thanks to its adjustable loudspeaker chain, the AUDIO CHAIN can fit for different application and configuration:
- STRAIGHT The AC System accurately reproduces your Music offering many modular configuration options. You can set the AC System 1 and AC System 2 in a straight configuration, properly setting the satellites column to have the system delivering even every subtle sound detail at its best.
- J SHAPE The AC System satellites chain design allows to angle each single AC1 from 0° to 30°, obtaining the optimal J-shape column configuration to offer a perfect listening experience. Hearing everything, everywhere properly enhances the performance and pleases the audience.
- 360° MODE We are the first offering the 360° setup option thanks to the innovative AC Systems chain design. The eight AC1 modules can be mounted in a circle configuration for excellent intelligibility at 360° having a full coverage area when playing on stages placed in a central position. In this case all the audience and the musicians as well can experience a perfect sound diffusion. This particular option works great also for convention centers, conference halls, shopping malls, churches , retails stores... no matter where you are in the audience, the sound is always reaching you at its best!
- TRUSS MOUNT
- WALL MOUNT
SPECIFICATIONS:
- Power 2000w
- Woofer 8×4" full-range
- Subwoofer 2×10"
- Spl 129 db
- Size L
- Series Audio chain
TECHNICAL FEATURES
MAIN FEATURES
- TOTAL POWER 2.000 W
- 129 dB max SPL
- FREQUENCY RESPONSE 50 Hz – 20 kHz
- 8×4″ neodymium full-range woofer
- 2×10″ subwoofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processor
- Modularity, pole mountable, easy to use and to transport
- Adjustable shape (Straight, J-shape, 360°)
MULTIPLE APPLICATIONS
- ONE MAN BAND
- SMALL BAND to BIG ORCHESTRA
- PIANO BAR
- CLUBS and DJ SET
- HOME AND MOVIE THEATER
- CONFERENCE HALL
- CHURCHES
ACOUSTICAL
- FREQUENCY RESPONSE : 50 Hz – 20 Khz
- MAX SPL : 129 dB
- HORIZONTAL COVERAGE ANGLE : 90°
- VERTICAL COVERAGE ANGLE : 30°
- SATELLITES : 8 x 4”, 8 Ohm
- SUB : 2 x 10” , 4 Ohm
INPUT/OUTPUT
- INPUT CONNECTORS : Jack – XLR female – AUX
- OUTPUT CONNECTORS : XLR male
- INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)
PROCESSOR
- CROSSOVER FREQUENCIES : 180 Hz
- PROTECTIONS : Thermal, rms
- LIMITER : Soft limiter
- CONTROLS : Volume, EQ
AMPLIFIER
- TOTAL POWER (4ohm) : 2.000 W PEAK
- HIGH FREQ. POWER (4ohm) : 1.000 W PEAK
- LOW FREQ. POWER (4ohm) : 1.000 W PEAK
- TOTAL POWER RMS (4ohm) : 1.000 W RMS
- HIGH FREQ. POWER RMS (4ohm) : 500 W RMS
- LOW FREQ. POWER RMS (4ohm) : 500 W RMS
- COOLING : Convection
- CONNECTIONS : VDE connector
CABINET
- CABINET MATERIAL : Multiply poplar
- HANDLES : 2 Side
- COLOUR : Black
- POLE MOUNT/CAP : Yes
PHYSICAL
- SYSTEM HEIGHT (Horizontal Sub) : min 125cm (49″) / max 170cm (67”)
- TOTAL WEIGHT : 29 kg (64 lbs)
- SUBWOOFER WEIGHT : 23 kg (50,7 lbs)
- SATELLITES WEIGHT : 6 kg (13,2 lbs)
- SYSTEM DEPTH : 48cm (19”)
- SYSTEM WIDHT : 43cm (17”)
- SYSTEM HEIGHT (Vertical Sub) : min 143 cm (56′) / max 188 cm (74”)
ACCESSORIES
- OPTIONALS : Satellites transport bag included
- OPTIONALS : Subwoofer cover optional
