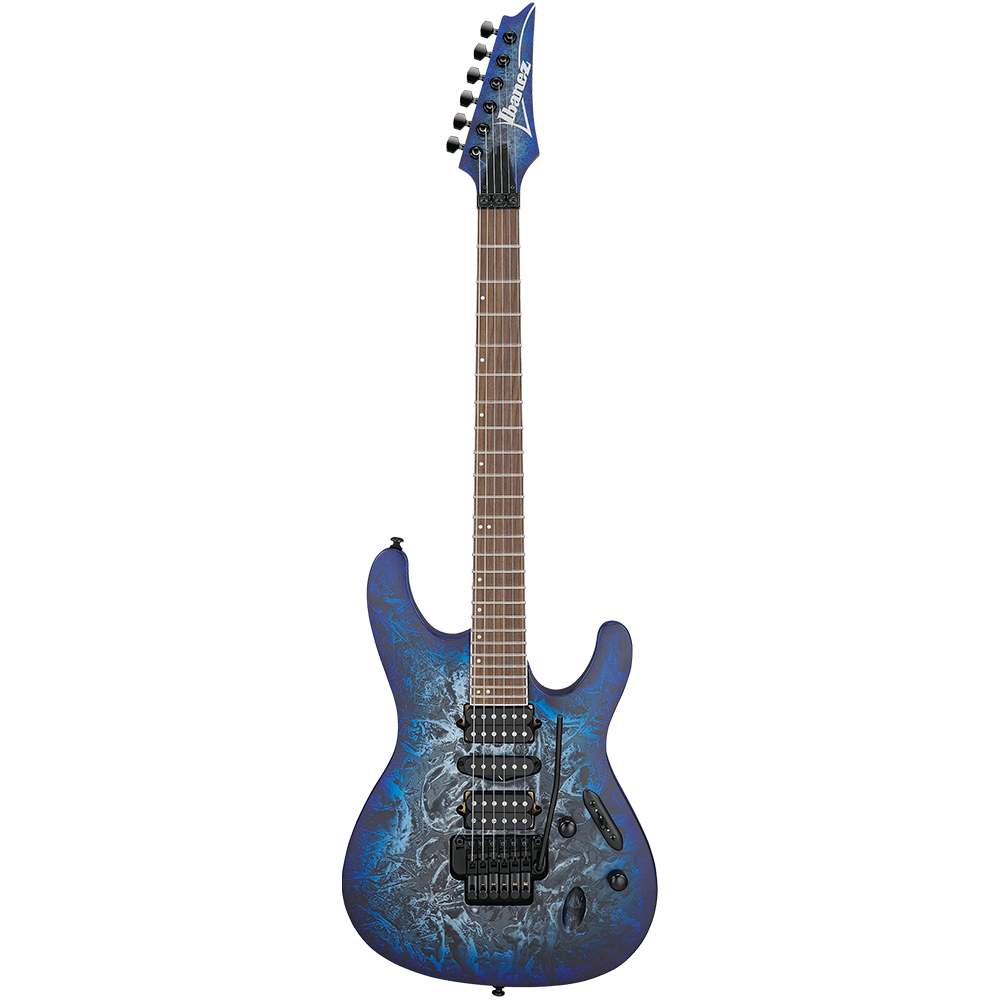

Ibanez S Series S770-CZM Electric Guitar

Color - Cosmic Blue Frozen Matte

SPECS

• Neck type Wizard III/Roasted Maple neck

• Top/back/body Okoume body

• Fretboard Rosewood fretboard/Off-set white dot inlay

• Fret Jumbo frets

• Number of frets 24

• Bridge Edge-Zero II bridge

• String space 10.8mm

• Neck pickup DiMarzio® Air Norton™ (H) neck pickup (Passive/Ceramic)

• Middle pickup DiMarzio® True Velvet™ (S) middle pickup (Passive/Alnico)

• Bridge pickup DiMarzio® The Tone Zone® (H) bridge pickup (Passive/Alnico)

• Factory tuning 1E,2B,3G,4D,5A,6E

• Strings D'Addario® EXL120

• String gauge .009/.011/.016/.024/.032/.042

• Nut Locking nut

• Hardware color Black

NECK DIMENSIONS

• Scale :648mm/25.5"

• a : Width 43mm at NUT

• b : Width 58mm at 24F

• c : Thickness 19mm at 1F

• d : Thickness 21mm at 12F

• Radius : 400mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case M300C

• Recommended Bag IGB540-BK

Features

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Wizard III Roasted Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

Okoume body
The Okoume body provides a bright and solid sound.

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
