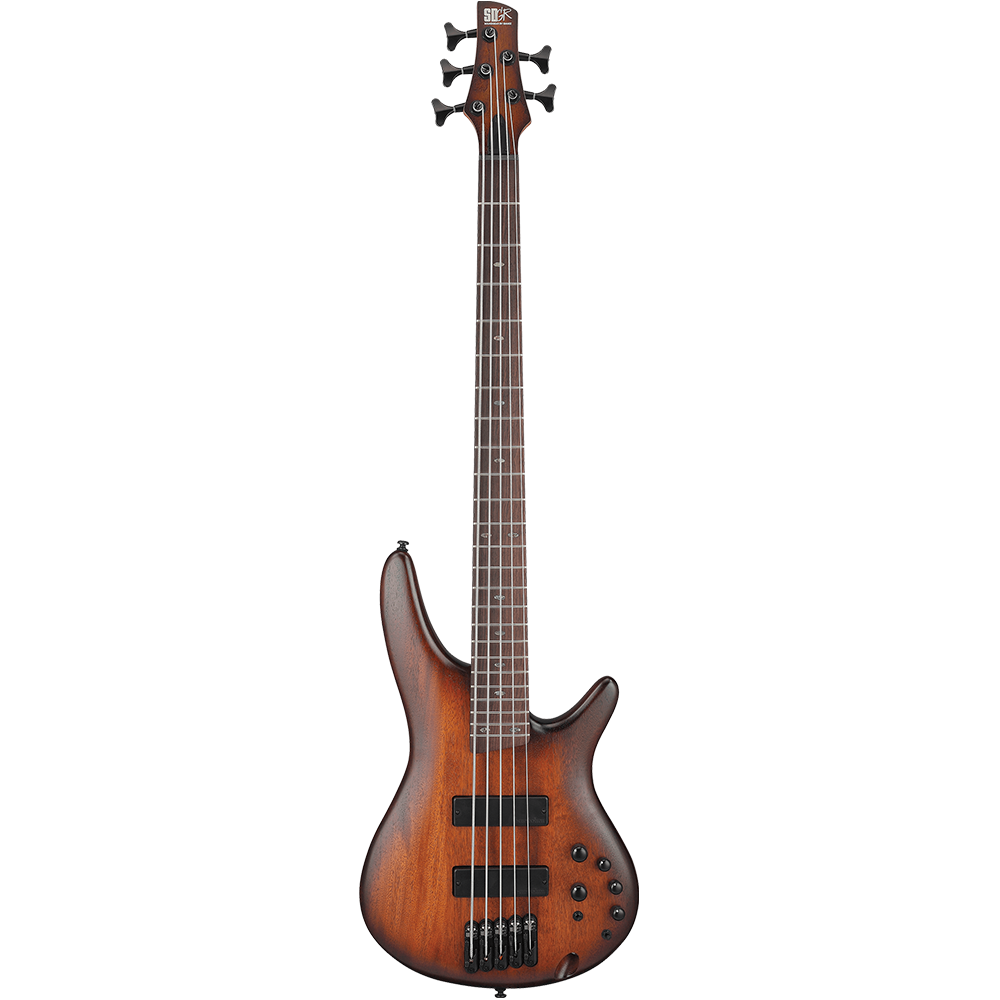

Ibanez SR Series SR505A-MHL Bass Guitar

COLOR - Mahogany Brown Burst Low

SPEC

• Neck type SR5/5pc Roasted Maple/Walnut neck

• Top/back/body Okoume body

• Fretboard Rosewood fretboard/Abalone oval inlay

• Fret Medium frets

• Number of frets 24

• Bridge MR5S bridge

• String space 16.5mm

• Neck pickup Bartolini® BH2 neck pickup (Passive)

• Bridge pickup Bartolini® BH2 bridge pickup (Passive)

• Equalizer Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone
• control on treble pot), 3-way Mid frequency switch

• Factory tuning 1G,2D,3A,4E,5B

• Strings D'Addario® EXL165 + .130

• String gauge .045/.065/.085/.105/.130

• Hardware color Black

NECK DIMENSIONS

• Scale : 864mm/34"

• a : Width 45mm at NUT

• b : Width 68mm at 24F

• c : Thickness 19.5mm at 1F

• d : Thickness 21.5mm at 12F

• Radius : 305mmR

CONTROLS

FREQUENCY RESPONSE


OTHERS

• Recommended Case MB300C

• Recommended Bag IBB540-BK


Features

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Medium frets
Medium sized frets enhance the accuracy of your notes.

Okoume body
The Okoume body provides a bright and solid sound.

5pc Roasted Maple/Walnut neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
