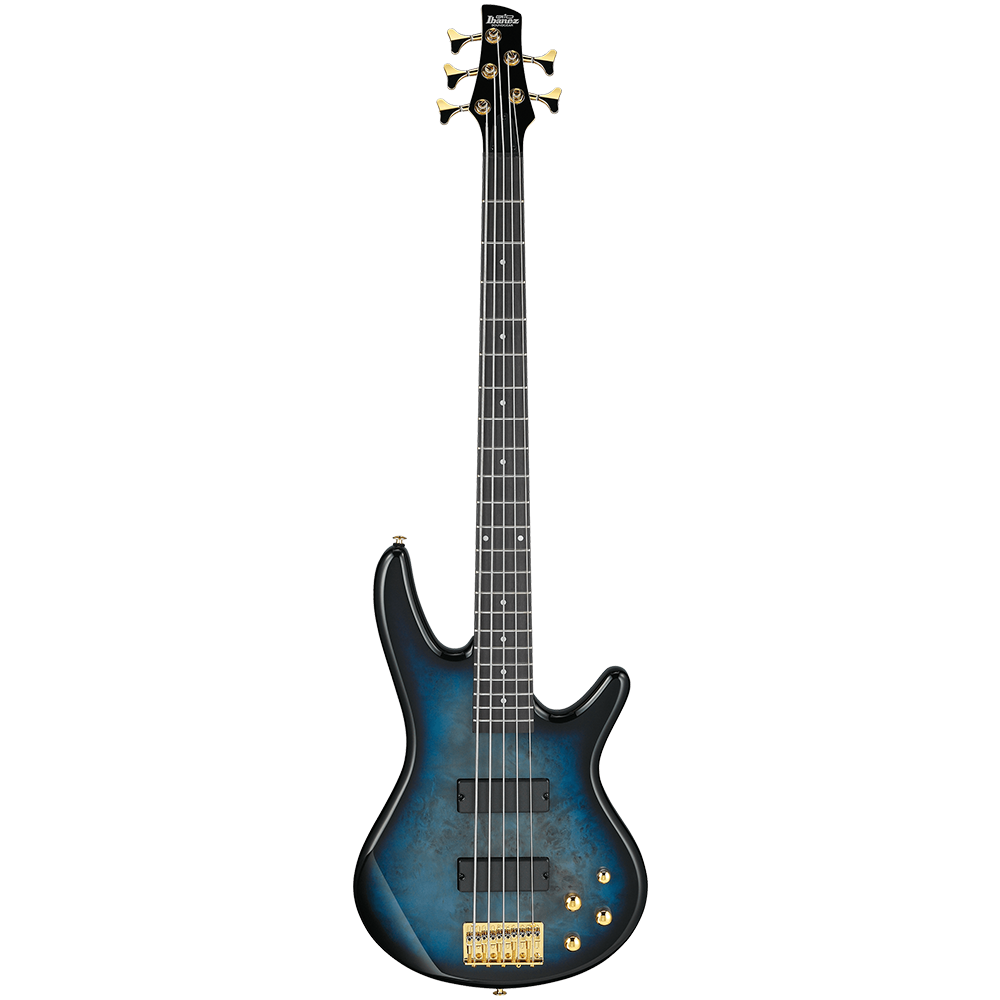

Ibanez SR Series GSR205PC-TMU Bass Guitar

COLOR VARIATION - Transparent Marine Burst

SPECS

• Neck type GSR5/Maple neck

• Top/back/body PB Canvas Art Grain/Okoume top/Okoume body

• Fretboard Purpleheart fretboard/White dot inlay

• Fret Medium frets

• Number of frets 22

• Bridge B15 bridge

• String space 16.5mm

• Neck pickup Dynamix H neck pickup (Passive)

• Bridge pickup Dynamix H bridge pickup (Passive)

• Equalizer Phat II EQ

• Factory tuning 1G,2D,3A,4E,5B

• String gauge .045/.065/.080/.100/.125

• Hardware color Gold

NECK DIMENSIONS

• Scale : 864mm/34"

• a : Width 45mm at NUT

• b : Width 67mm at 22F

• c : Thickness 21mm at 1F

• d : Thickness 22mm at 12F

• Radius : 305mmR

CONTROLS


FREQUENCY RESPONSE


OTHER FEATURES

• Recommended Case MB300C


Features

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.

Maple neck
The Maple neck provides stability and bright tonal character.

Phat II EQ
Phat II active bass boost adds additional low-end power.

PB Canvas Art Grain top / Okoume body
The PB Canvas Art Grain top displaying a gorgeous wood grain and the Okoume body provide a bright and solid sound.

B10 series bridge
The B10 bridge allows fully adjustable intonation and solid tuning stability.

Dynamix H pickups
Dynamix H pickups deliver rich and powerful sound.
