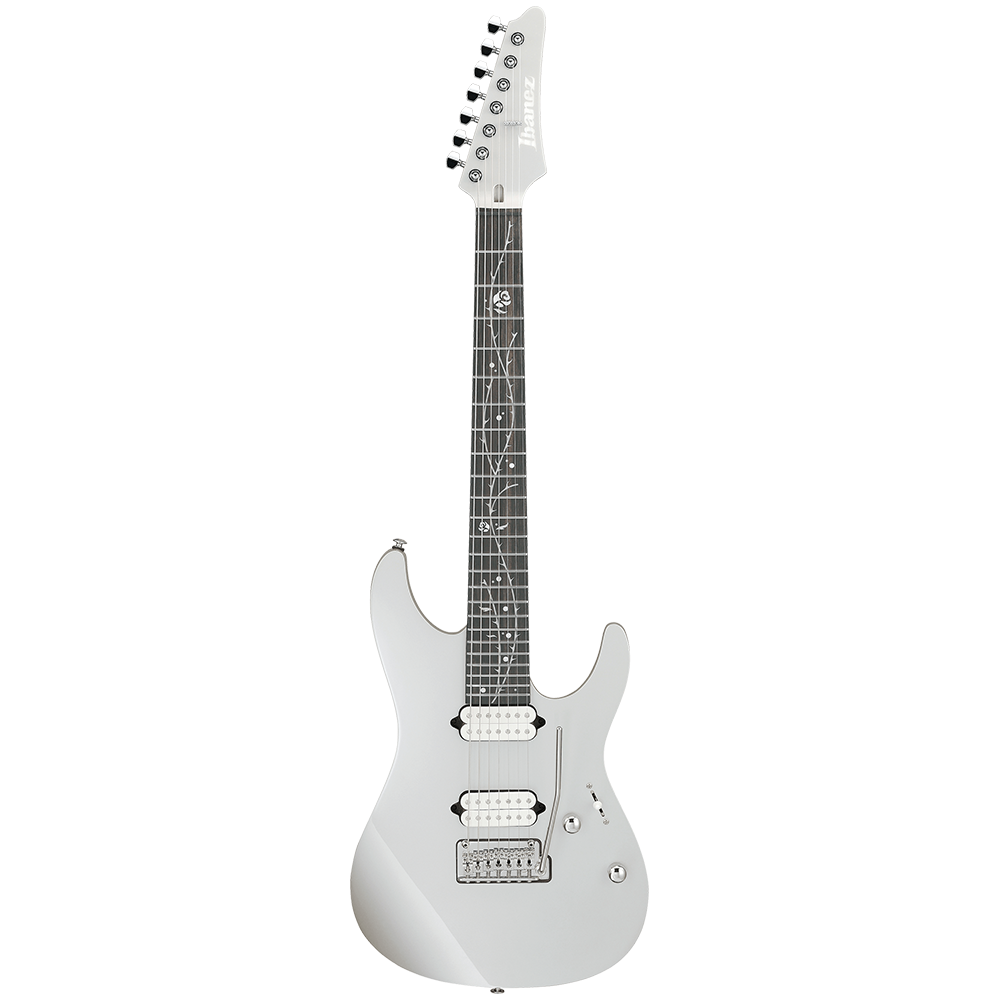

Ibanez Signature Series TOD70 Classic Silver Electric Guitar W/Bag

SPECS

• Neck type AZ7 Oval C/Roasted Maple neck

• Top/back/body American Basswood body

• Fretboard Ebony fretboard/Tree of Death inlay

• Fret Jumbo Stainless Steel frets

• Number of frets 24

• Bridge Gotoh® T1572S tremolo bridge

• String space 10.5mm

• Neck pickup Fishman® Fluence™ Tim Henson Signature Series 7 (H) neck pickup (Active/Alnico)

• Bridge pickup Fishman® Fluence™ Tim Henson Signature Series 7 (H) bridge pickup (Active/Alnico)

• Factory tuning 1E,2B,3G,4D,5A,6E,7B

• Strings D'Addario® EXL110-7

• String gauge .010/.013/.017/.026/.036/.046/.059

• Nut Graph Tech®

• Hardware color Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width 47mm at NUT

• b : Width 66mm at 24F

• c : Thickness 20.5mm at 1F

• d : Thickness 22.5mm at 12F

• Radius : 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case    MR500C

• Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson
• Signature Series pickups

• Gotoh® MG-T locking machine heads

• Luminescent side dot inlay

• Gig bag included


Features

Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

American Basswood body
The American Basswood body delivers a natural and flat tone.

Fishman® Fluence™ Tim Henson Signature Series 7 Humbacker pickups
Tim's signature Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars. Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate/ Voice 3: Tim's fluid neck single coil Bridge Pickup Voice 1: Based on Fishman®'s hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Gotoh® T1572S tremolo
The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups
The Voicing switch allows the pickups to switch between three musically complementary voices.

Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
