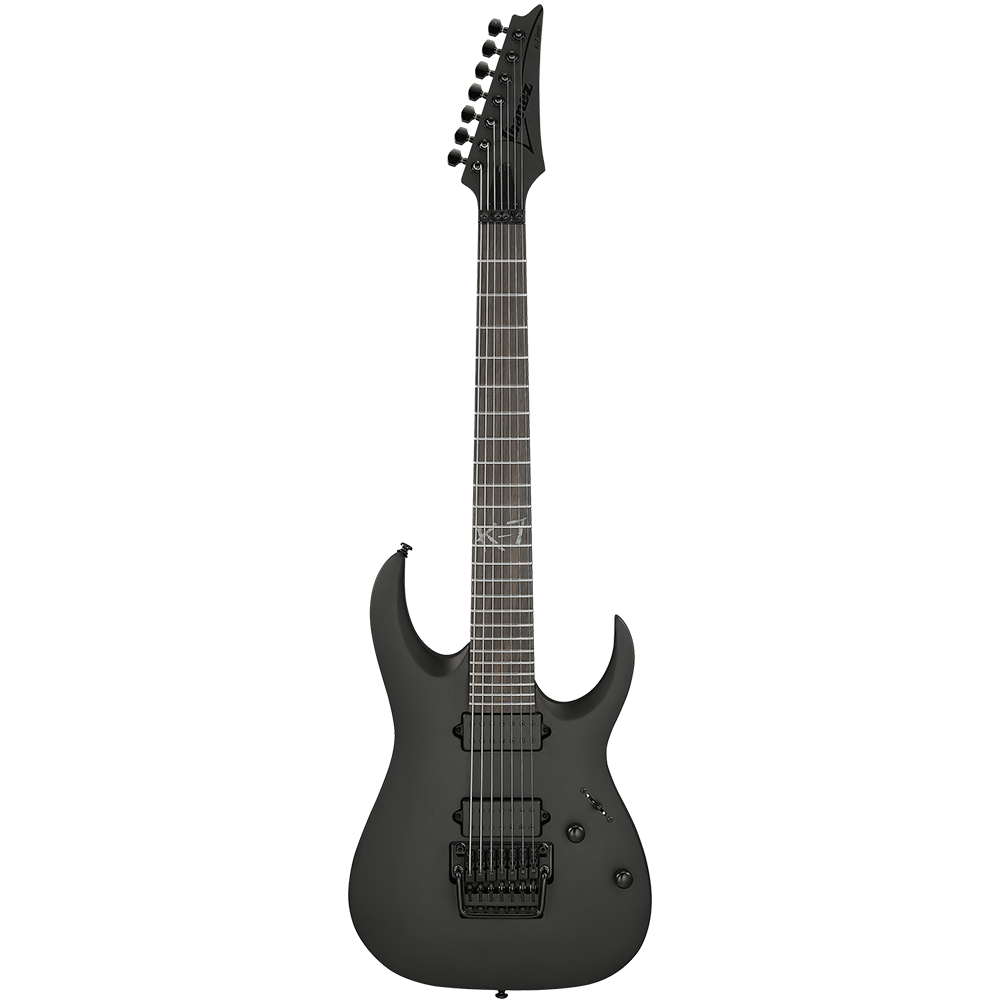

Ibanez Signature Series K7YIN Electric Guitar

SPECS

• Neck type Wizard II-7/5pc Maple/Walnut neck

• Top/back/body Nyatoh body

• Fretboard Ebony fretboard/K-7 special inlay

• Fret Jumbo frets

• Number of frets 24

• Bridge Lo-Pro Edge7 bridge w/U-bar

• String space 10.8mm

• Neck pickup DiMarzio® Blaze™ (H) neck pickup (Passive/Ceramic)

• Bridge pickup DiMarzio® Blaze™ (H) bridge pickup (Passive/Ceramic)

• Factory tuning 1D,2A,3F,4C,5G,6D,7A

• Strings D'Addario® EXL110-7

• String gauge .010/.013/.017/.026/.036/.046/.059

• Nut Locking nut

• Hardware color Black

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width 48mm at NUT

• b : Width 68mm at 24F

• c : Thickness 19mm at 1F

• d : Thickness 21mm at 12F

• Radius : 400mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case M350C

• Recommended Bag IGB540-BK

• Gotoh® machine heads

• Luminescent side dot inlay


Features

Wizard II-7 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

DiMarzio® Blaze™ H-H pickups
DiMarzio® Blaze™ pickups were first introduced for our Universe guitars. With a scooped mid-range and just-right output level, they can handle everything from jazzy-clean tone to heavily distorted sound.

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
