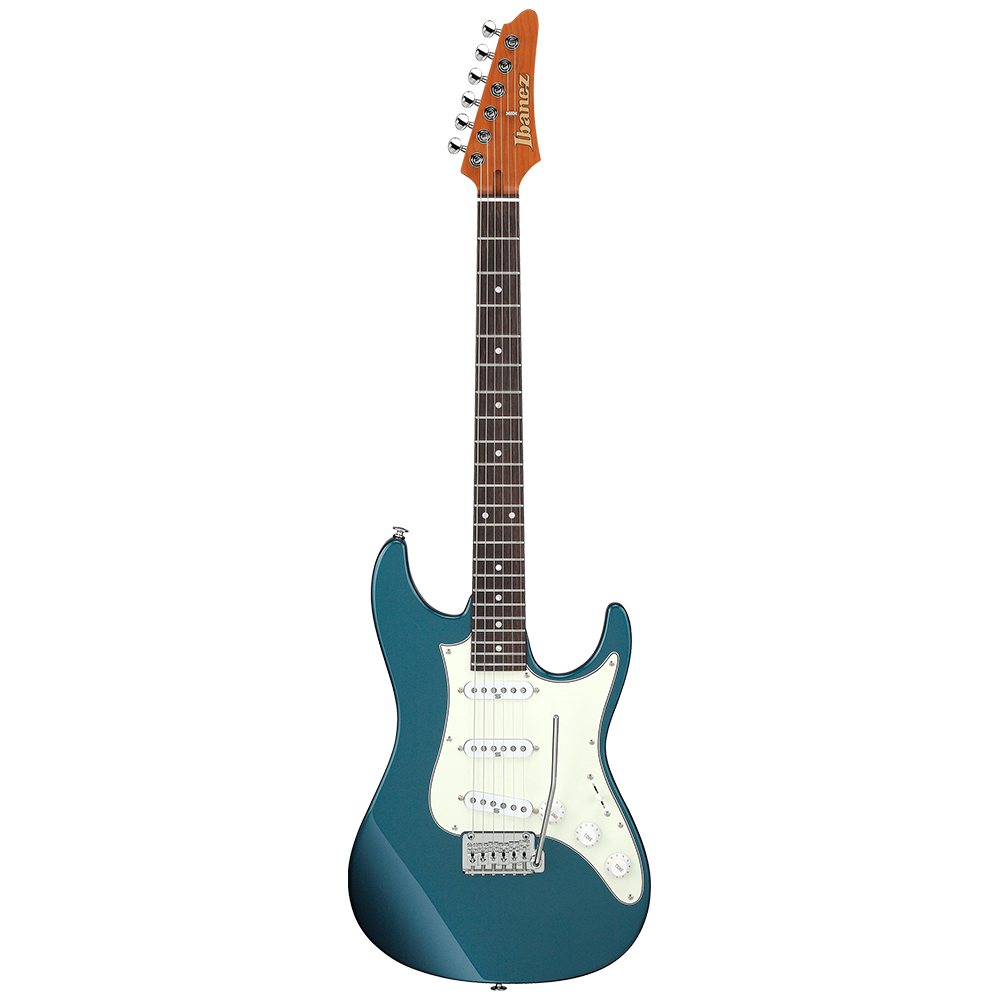

Ibanez AZ Series Prestige AZ2203N Electric Guitar

COLOR VARIATION：Antique Turquoise

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.

SPECS

• Neck type AZ Oval CS-TECH WOOD Roasted Maple neck
• Top/back/body Alder body
• Fretboard Rosewood fretboard Mother of Pearl dot inlay
• Fret Jumbo Stainless Steel frets Prestige fret edge treatment
• Number of frets 22
• Bridge Gotoh T1702B bridge
• String space 10.5mm
• Neck pickup Seymour Duncan Fortuna (S) neck pickup Passive/Alnico
• Middle pickup Seymour Duncan Fortuna (S) middle pickup/Passive/Alnico
• Bridge pickup Seymour Duncan Fortuna (H) bridge pickup/Passive/Alnico
• Factory tuning 1E,2B,3G,4D,5A,6E
• Strings D'Addario EXL110
• String gauge .010/.013/.017/.026/.036/.046
• Nut Bone nut
• Hardware color Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width 42mm at NUT

• b : Width 56.4mm at 22F

• c : Thickness 20.5mm at 1F

• d : Thickness 22.5mm at 12F

• Radius : 228mmR to 305mmR COMPOUND

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Bag IGB724-BK

• Gotoh® Magnum Lock machine heads w/H.A.P.

• Luminlay side dots

• Fretboard Radius: 228mm@nut to 305mm@22nd fret Compound

• Blender

• Non-recessed bridge cavity

• Hardshell case included

Features


Blender
With the simple turn of the blend knob, you can incorporate just the right amount of each pickup in a given position to achieve your desired sound.


Seymour Duncan® Fortuna™ S-S-S pickups
Seymour Duncan® Fortuna™ Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.


Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.


Gotoh® T1502S tremolo
The T1502S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.


Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.


Compound Radius Fretboard (228mm to 305mm)
Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.


5 tremolo springs
Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.


Non-recessed bridge cavity
While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.


Oval C S-TECH WOOD Roasted Maple neck
The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.


Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)
GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.


Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.


Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
