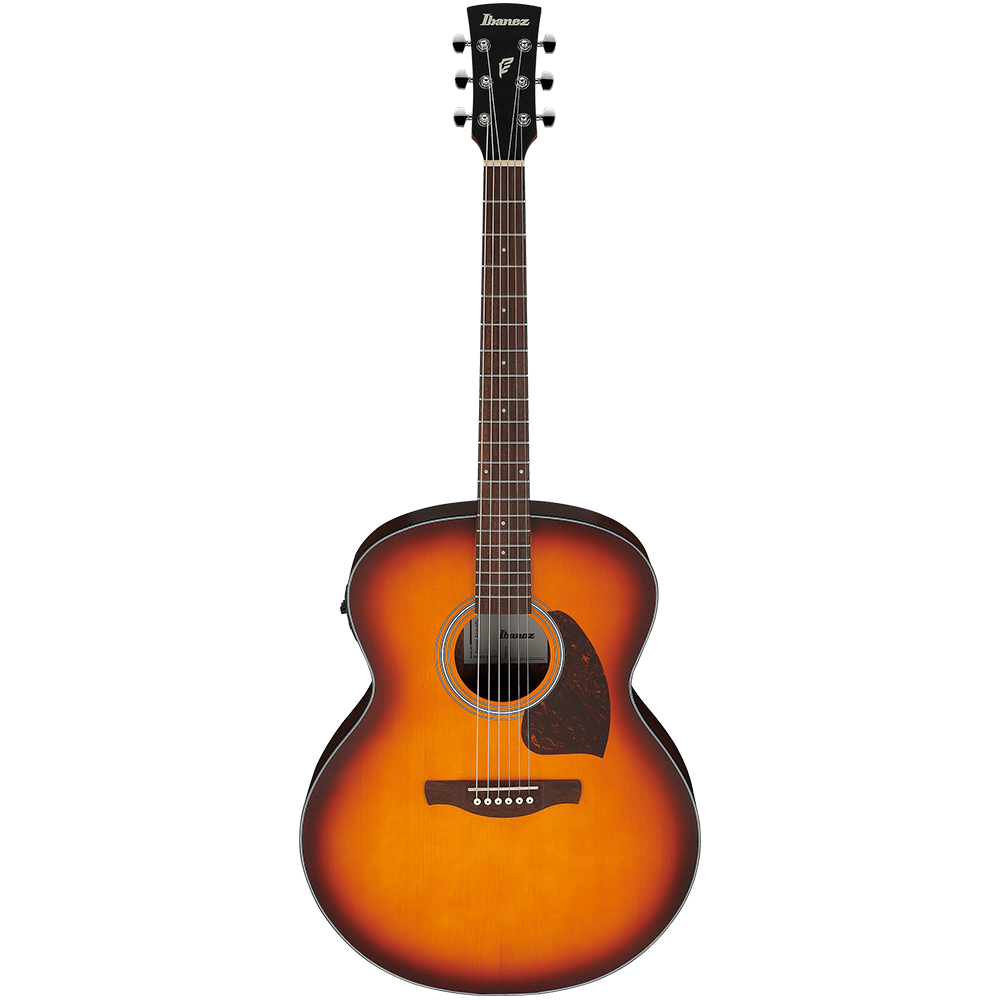

Ibanez PF Series PJ50E-OAH Semi Acoustic Guitar

COLOR VARIATION：Open Pore Vintage Amber Sunburst top

SPECS

• Body shape Jumbo body

• Top Spruce top

• Back & sides Meranti back & Meranti sides

• Neck PJ/Meranti neck

• Fretboard Nandu Wood fretboard

• Bridge Nandu Wood bridge

• Inlay White dot inlay

• Soundhole rosette Water decal

• Tuning machine Chrome Die-cast tuners

• Number of frets 20

• Bridge pins Ibanez Advantage™

• Strings Ibanez IACS6C

• String gauge .012/.016/.024/.032/.042/.053

• String space 11mm

• Factory tuning 1E,2B,3G,4D,5A,6E

• Pickup Ibanez Undersaddle

• Preamp Ibanez AEQ-2T preamp w/Onboard tuner

• Output jack 1/4" output

• Battery 9V x1

NECK DIMENSIONS

• Scale : 650mm/25.5"

• a : Width 42mm at NUT

• b : Width 54mm at 14F

• c : Thickness 21mm at 1F

• d : Thickness 22mm at 7F

• Radius : 250mmR

BODY DIMENSIONS

• a : Length 20 1/8"

• b : Width 16 3/4"

• c : Max Depth 4 3/4"

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case FRS900JA

• Recommended Bag IAB540-BK

Features

Meranti neck

Nandu Wood fretboard
The Nandu Wood fretboard provides a rich and warm tone.

Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Meranti back and sides
Meranti back and sides provide a warm and balanced tone.

Nandu Wood bridge
The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
