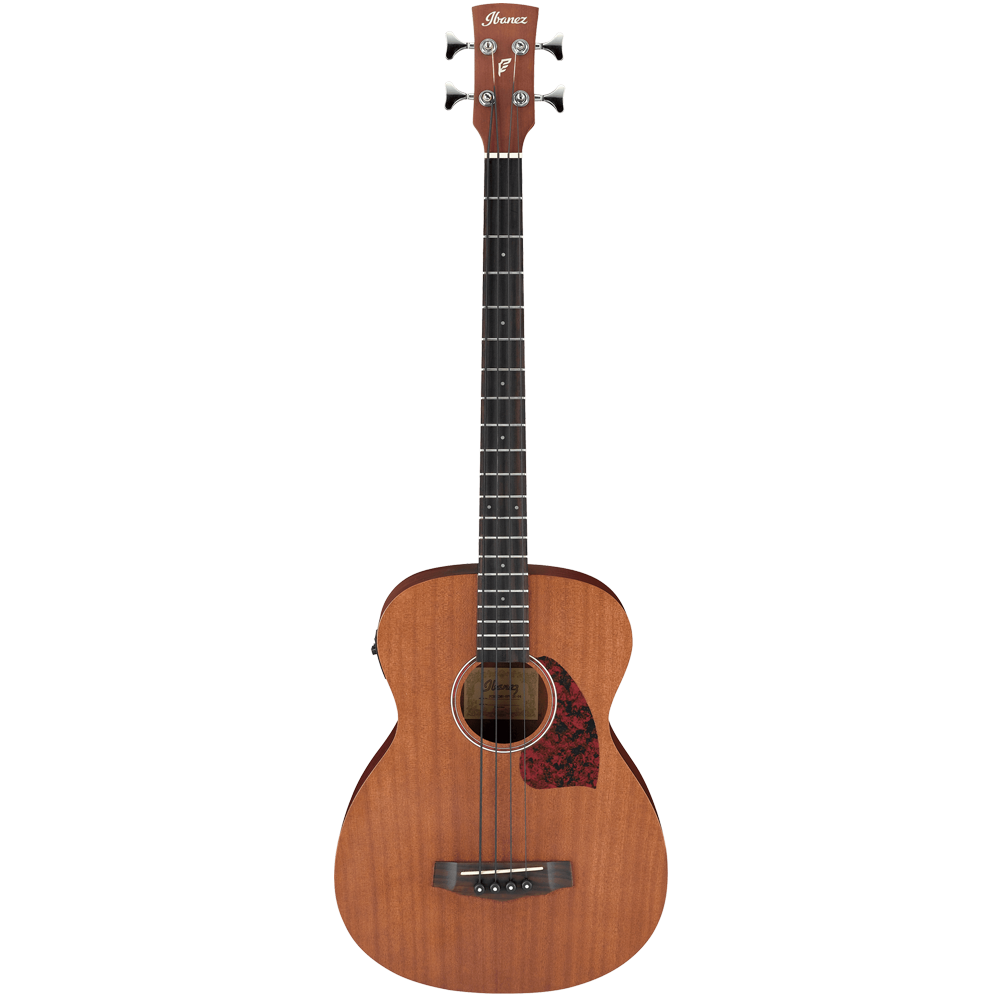

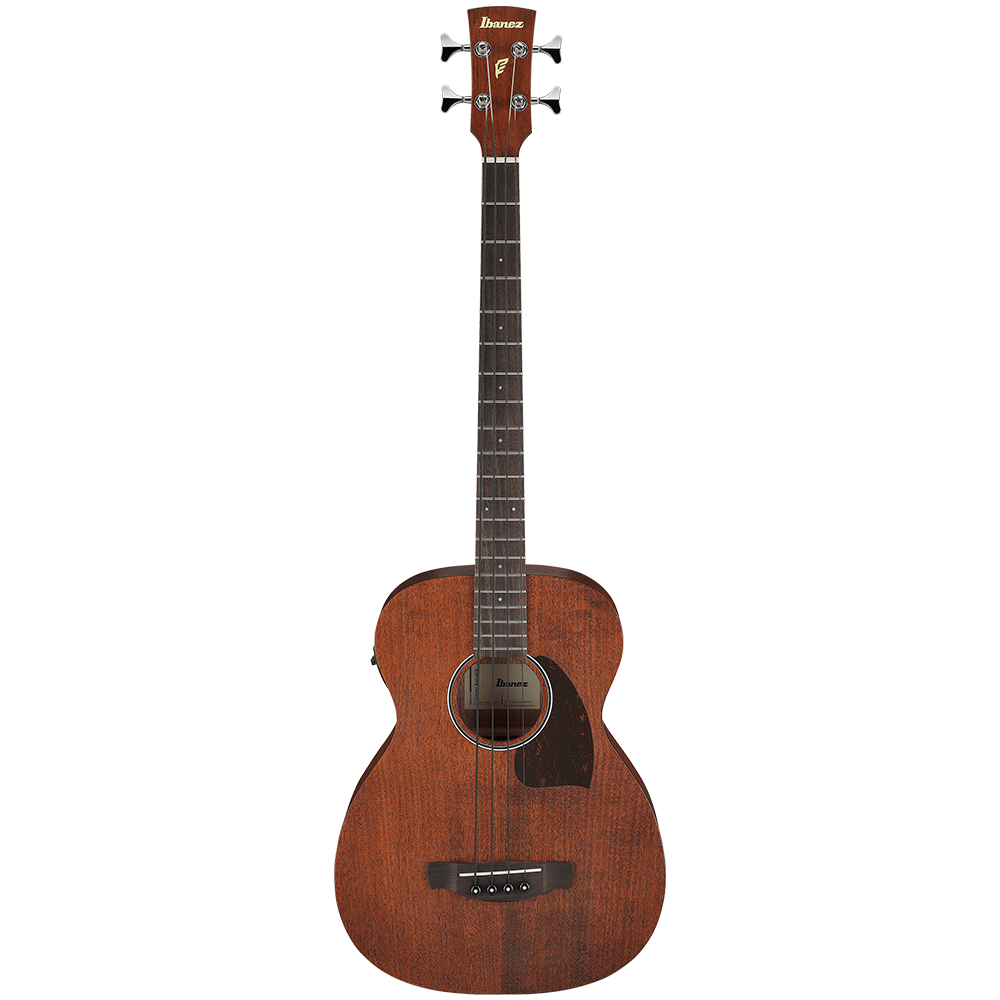

Ibanez PCBE12MH OPN Acoustic Bass Guitar

• Body shape : Grand Concert body
• Bracing X Bracing
• Top : Mahogany top
• Back & sides : Mahogany back & sides
• Neck : Maple
• Fretboard : Rosewood
• Bridge : Rosewood
• Soundhole : rosette Tortoiseshell rosette
• Tuning machine : Chrome Die-cast tuners
• Number of frets : 20
• Bridge pins : Plastic Bridge pins
• Strings : Ibanez IABS4XC32 carbon coated strings
• Pickup : Ibanez Under Saddle pickup
• Preamp : Ibanez AEQ-2T preamp w/Onboard tuner

NECK DIMENSIONS

• Scale : 812.8mm
• a : Width 43mm at NUT
• b : Width 58mm at 14F
• c : Thickness 21mm at 1F
• d : Thickness 23.5mm at 7F
• Radius : 400mmR
