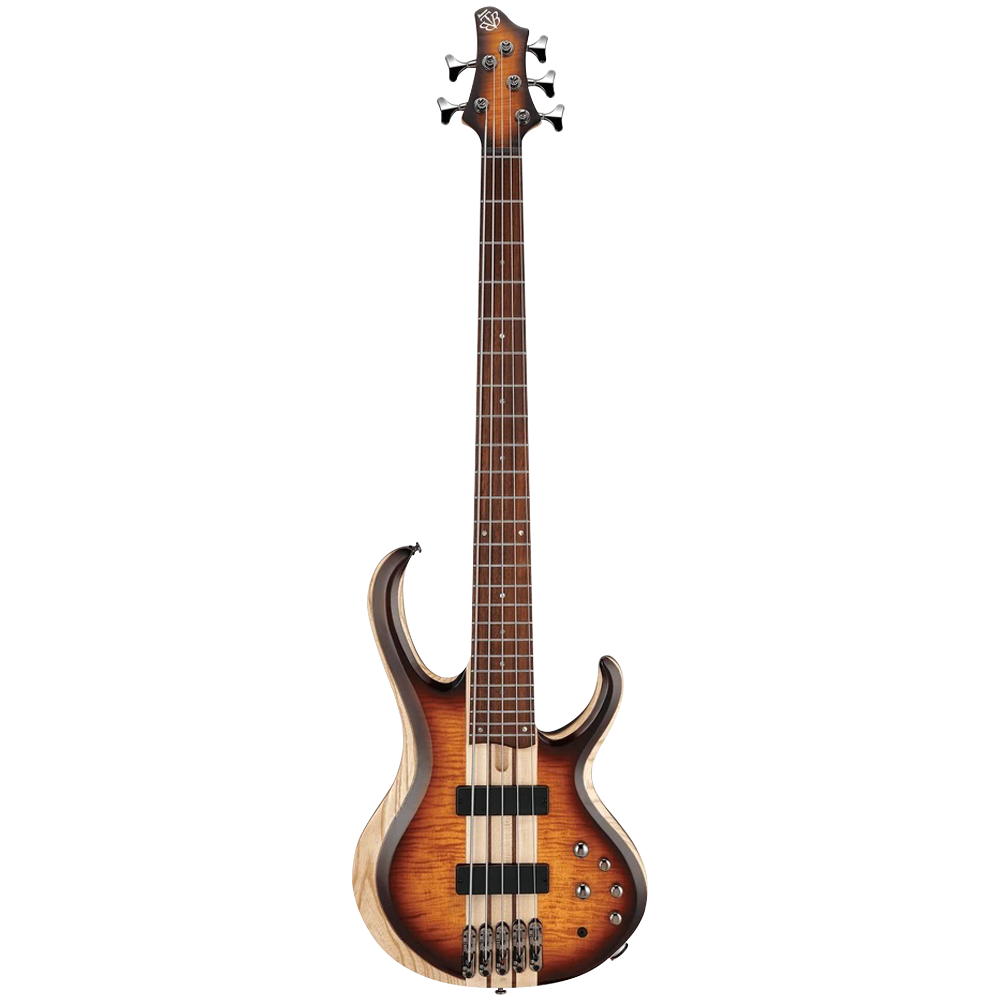

Ibanez BTB Series BTB765 DEL Bass Guitar

• Top: Flamed Maple top

• Back/body: Ash/Okoume wing body

• Neck Type: BTB5 5pc Maple/Walnut w/Graphite reinforcement rods Neck-through

• Fretboard: Rosewood fretboard

• Inlay: Abalone dot inlay

• Fret: Medium Stainless Steel frets

• Number Of Frets: 24 (+ zero fret)

• Bridge: MR5 bridge

• Neck Pickup: Bartolini BH2 neck pickup Passive

• Bridge Pickup: Bartolini BH2 bridge pickup Passive

• Equaliser: Ibanez Custom Electronics 3-band EQ w/ 3-way Mid frequency switch

• Factory tuning: 1C 2G 3D 4A 5E 6B

• Hardware Color: Cosmo black

• Scale: 889mm

• a : Width: 47mm at NUT

• b : Width: 76mm at 24

• c : FThickness: 20mm at 1

• d : FThickness: 22mm at 12F
  Radius : 950mmR

CONTROLS


FREQUENCY RESPONSE

Features


5pc Maple/Walnut neck with Graphite reinforcement rods
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.


Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.


Ibanez Custom Electronics 3-band EQ w/Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.


Bartolini BH2 pickups
The Bartolini BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.


MR5 bridge
The Mono-Rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.
