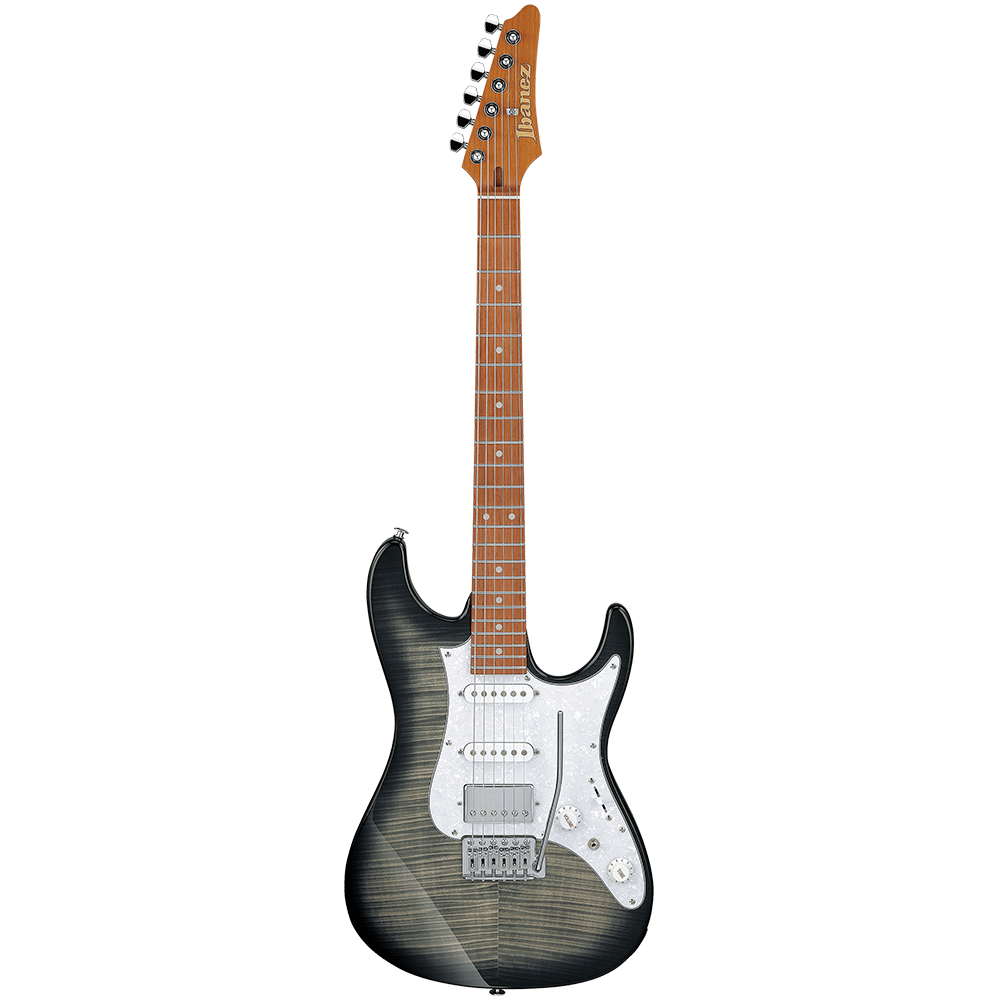

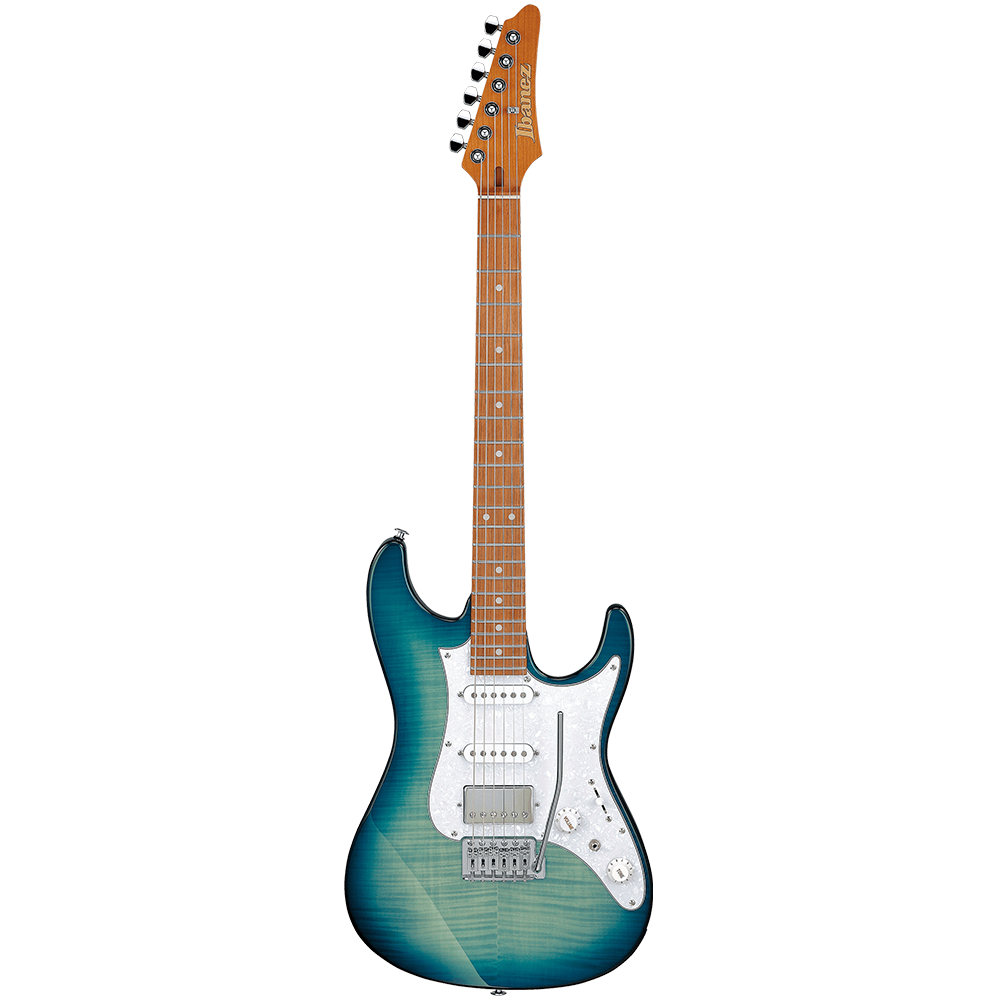

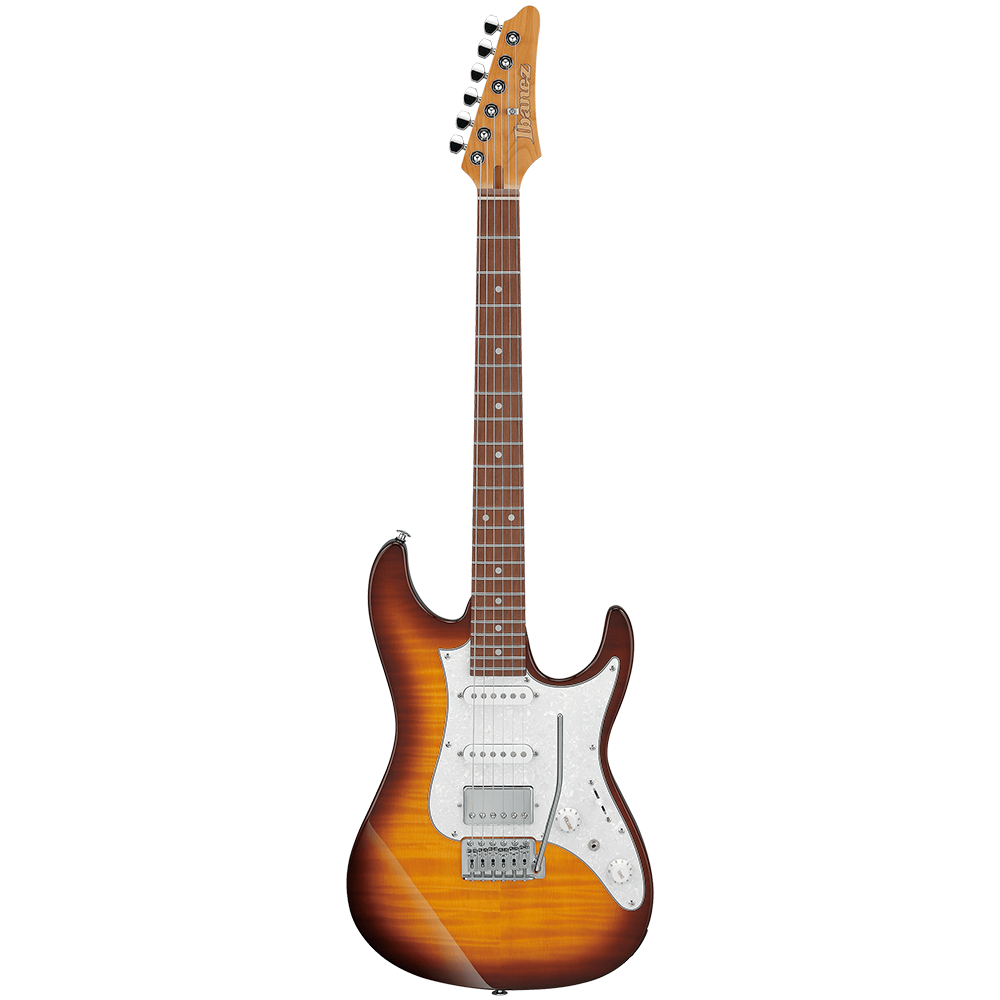

Ibanez AZ Standard Series AZ22S1F Electric Guitar

SPECS

• neck type AZ/Roasted Maple neck

• top/back/body Flamed Maple top/Alder body

• fretboard Jatoba fretboard/White dot inlay

• fret Jumbo Stainless Steel frets

• number of frets 22

• bridge T106 bridge

• string space 10.5mm

• neck pickup Ibanez Classic Custom (S) neck pickup(Passive/Alnico)

• middle pickup Ibanez Classic Custom (S) middle pickup(Passive/Alnico)

• bridge pickup Ibanez Classic Custom (H) bridge pickup(Passive/Ceramic)

• factory tuning 1E,2B,3G,4D,5A,6E

• string gauge .010/.013/.017/.026/.036/.046

• hardware color Chrome

NECK DIMENSIONS

• Scale :    648mm/25.5"

• a : Width 42mm at NUT

• b : Width 56.5mm at 22F

• c : Thickness 20.5mm at 1F

• d : Thickness 22.5mm at 12F

• Radius:305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES
Recommended Case M300C
Recommended Bag IGB540-BK
Locking machine heads
Dyna-MIX9 switching system w/Alter Switch

Features

Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Jatoba fretboard
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Locking machine heads
Locking machine heads ensure accurate and stable tuning.

Flamed Maple top / Alder body
The Flamed Maple top displays a beautiful wood grain. The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Ibanez Classic Custom pickups
Ibanez Classic Custom pickups offer a versatile tonal palette, combining the warm, clear sound of alnico neck and middle single-coil pickups with the powerful, dynamic output of a ceramic bridge humbucker. This unique blend delivers precise articulation and expressive tone.

T106 tremolo
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
