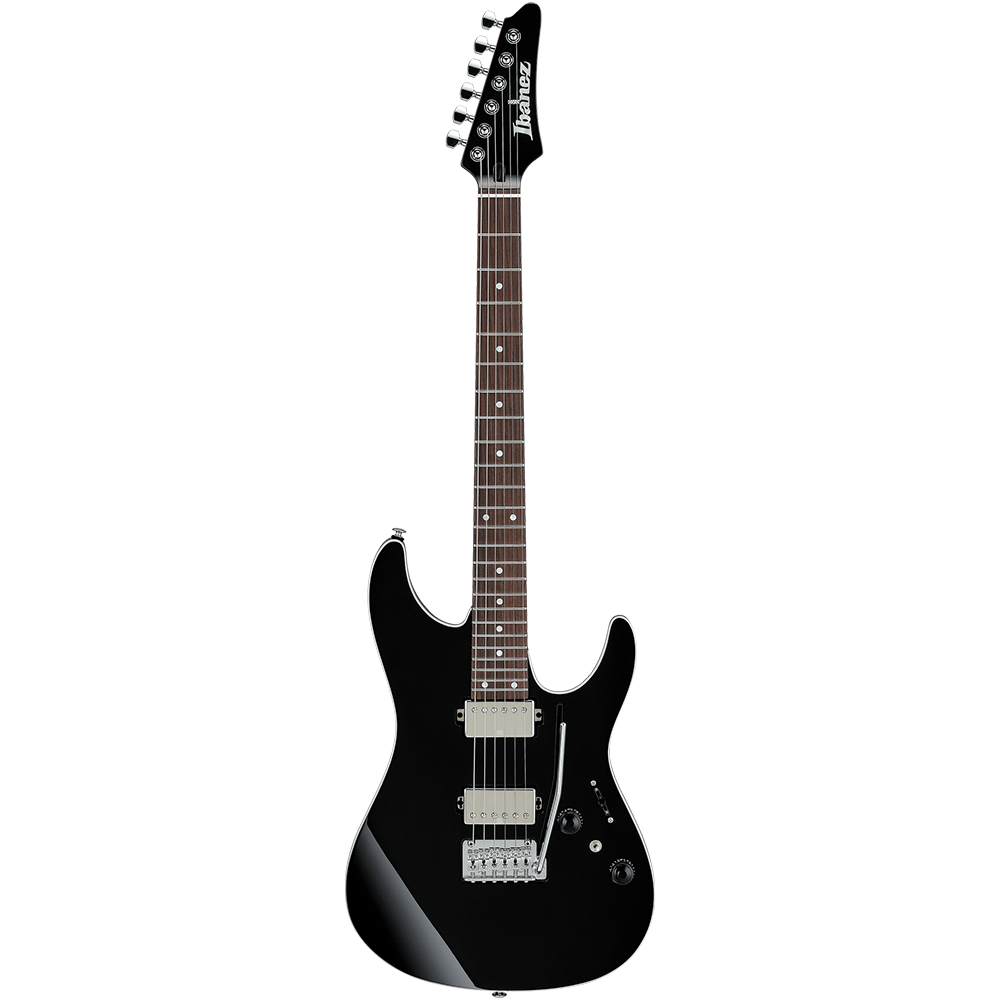

Ibanez AZ Series AZ42P1 BK Electric Guitar

COLOR VARIATION：Black

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.


SPECS

• neck type AZ Oval CRoasted Maple neck
• top/back/body American Basswood body
• fretboard Rosewood fretboardMother of Pearl dot inlay
• fret Jumbo Stainless Steel frets
• number of frets 24
• bridge Gotoh® T1502 bridge
• string space 10.5mm
• neck pickup Seymour Duncan® Hyperion (H) neck pickupPassive/Alnico
• bridge pickup Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico
• factory tuning 1E,2B,3G,4D,5A,6E
• strings D'Addario® EXL110
• string gauge .010/.013/.017/.026/.036/.046
• nut Graph Tech® nut
• hardware color Chrome

• Scale : 648mm/25.5"
• a : Width 42mm at NUT
• b : Width 57mm at 24F
• c : Thickness 20.5mm at 1F
• d : Thickness 22.5mm at 12F
• Radius : 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MR500C
• Gig bag included
• Gotoh® MG-T locking machine heads
• dyna-MIX10 switching system w/Alter Switch
• Luminescent side dot inlay

Features

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.
