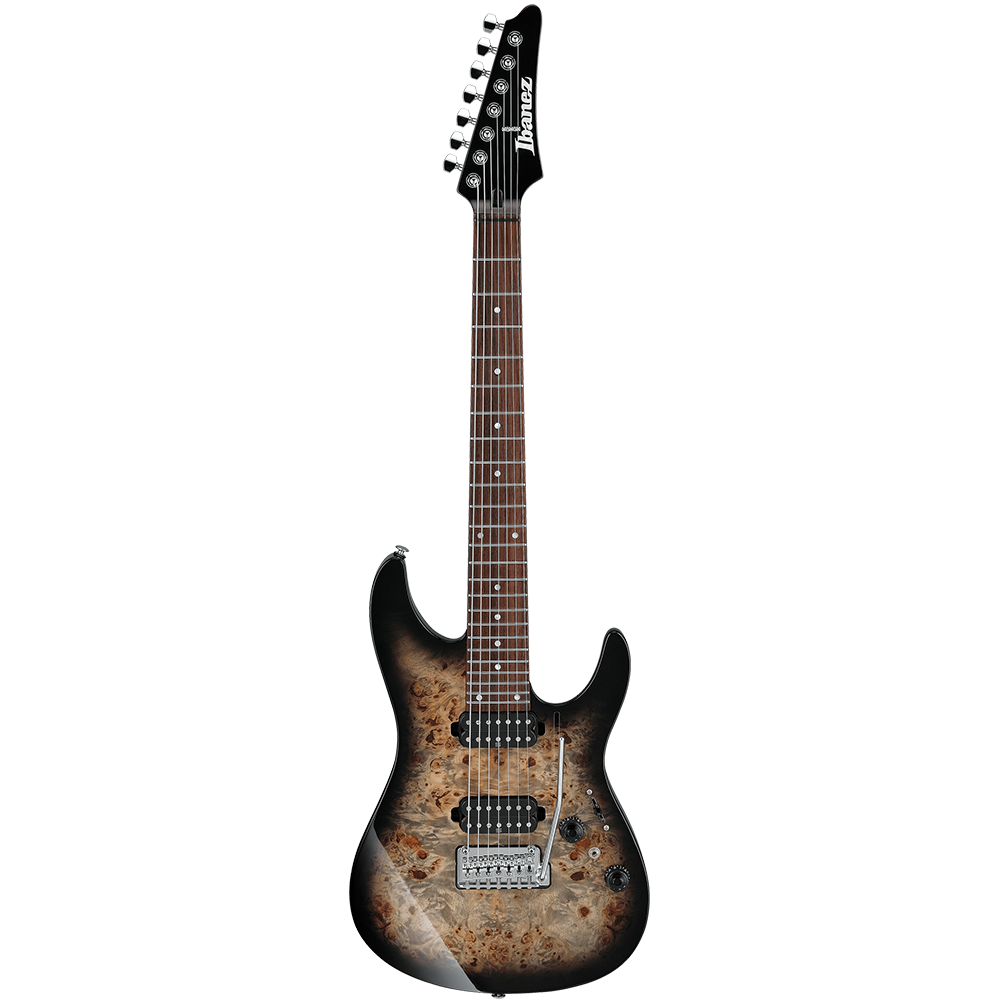

Ibanez AZ Series Premium AZ427P1PB-CKB Electric Guitar

COLOR VARIATION：Charcoal Black Burst

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.



SPECS

• Neck type AZ7 Oval C/Roasted Maple neck
• Top/back/body Poplar Burl top/American Basswood body
• Fretboard Rosewood fretboard/Mother of Pearl dot inlay
• Fret Jumbo Stainless Steel frets
• Number of frets 24
• Bridge Gotoh® T1572S bridge
• String space 10.5mm
• Neck pickup Seymour Duncan® Hyperion™ 7 (H) neck pickup (Passive/Alnico)
• Bridge pickup Seymour Duncan® Hyperion™ 7 (H) bridge pickup (Passive/Alnico)
• Factory tuning 1E,2B,3G,4D,5A,6E,7B
• Strings D'Addario® XL110-7
• String gauge .010/.013/.017/.026/.036/.046/.059
• Nut Graph Tech® nut
• Hardware color Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"
• a : Width 47mm at NUT
• b : Width 66mm at 24F
• c : Thickness 20.5mm at 1F
• d : Thickness 22.5mm at 12F
• Radius : 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MR500C
• Gig bag included
• Gotoh® MG-T locking machine heads
• dyna-MIX10 switching system w/Alter Switch
• Luminescent side dot inlay

Features

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Gotoh MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple neck
Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan® Hyperion™ Pickups
Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.
