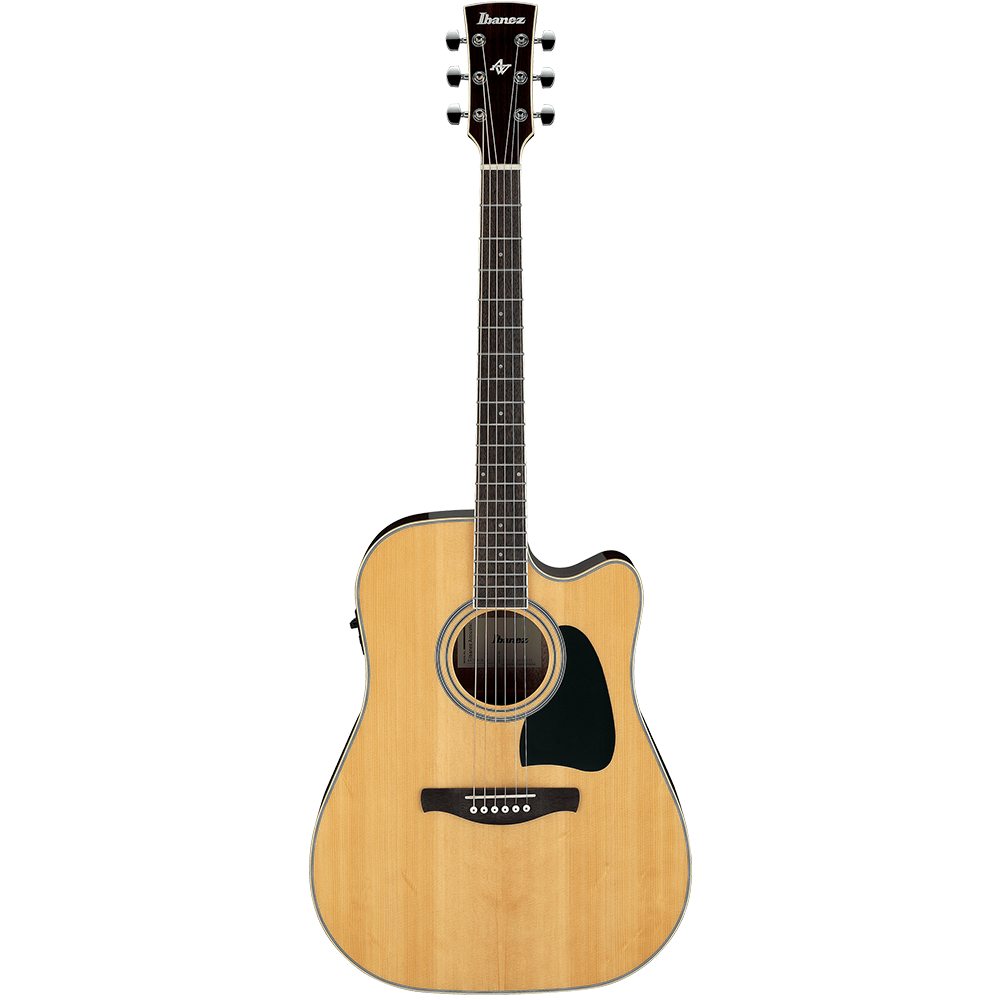

Ibanez AW70ECE NT Semi Acoustic Guitar W/Cutaway Electronics
Ibanez AW70ECE NT Semi Acoustic Guitar W/Cutaway Electronics
Couldn't load pickup availability
Color - Natural High Gloss
SPECS
- body shape Cutaway Dreadnought body
- top Solid Sitka Spruce top
- back & sides Okoume back & Okoume sides
- neck AWNyatoh neck
- fretboard Laurel fretboard
- bridge Laurel bridge
- inlay White dot inlay
- soundhole rosette Black & White multi
- tuning machine Chrome Die-cast tuners (18:1 gear ratio)
- number of frets 20
- bridge pins Ibanez Advantage™
- strings D'Addario® XTAPB1253
- string gauge .012/.016/.024/.032/.042/.053
- string space 11mm
- factory tuning 1E,2B,3G,4D,5A,6E
- pickup Ibanez T-bar Undersaddle
- preamp Ibanez AEQ-TP2 preamp w/Onboard tuner
- output jack Balanced XLR & 1/4" outputs
- battery 9V x1
NECK DIMENSIONS
- Scale : 651mm
- a : Width 43mm at NUT
- b : Width 55mm at 14F
- c : Thickness 21mm at 1F
- d : Thickness 22mm at 7F
- Radius : 400mmR
BODY DIMENSIONS
- a : Length 20 1/8"
- b : Width 15 3/4"
- c : Max Depth 5"
PREAMP
OTHERS
- Recommended Case FS40DA
- Recommended Bag IAB540-BK
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.
Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Laurel fretboard
The Laurel fretboard provides a rich and warm tone.
Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
