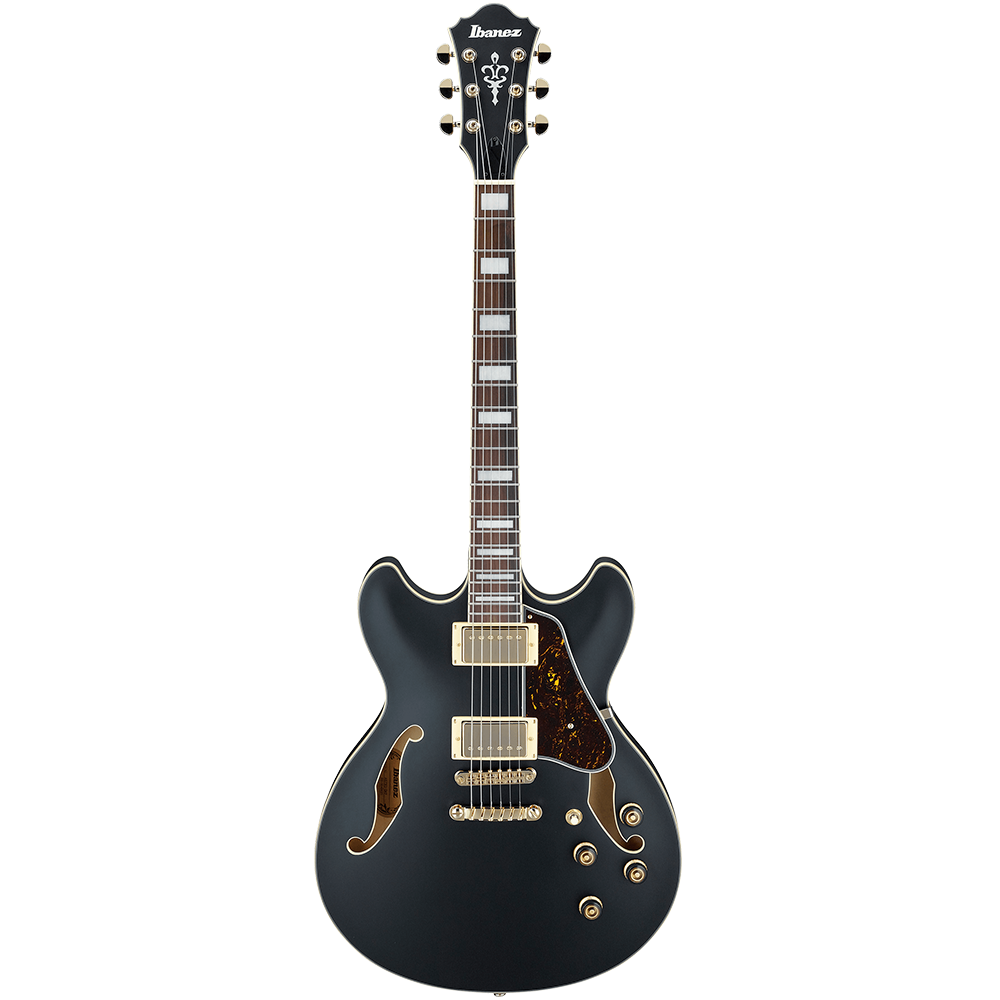

Ibanez AS73G BKF Hollow Body Electric Guitar



SPECS

• neck type AS ArtcoreNyatohset-in neck
• top/back/side Linden top Linden backLinden sides
• fretboard Bound Walnut fretboardAcrylic block inlay
• fret Medium frets
• number of frets 22
• bridge Gibraltar Performer bridge
• string space 10.5mm
• tailpiece Quik Change III tailpiece
• neck pickup Classic Elite (H) neck pickupPassive/Ceramic
• bridge pickup Classic Elite (H) bridge pickupPassive/Ceramic
• factory tuning 1E,2B,3G,4D,5A,6E
• string gauge .010/.013/.017/.030/.042/.052
• hardware color Gold

NECK DIMENSIONS

• Scale : 628mm/24.7"
• a : Width 43mm at NUT
• b : Width 57mm at 22F
• c : Thickness 21mm at 1F
• d : Thickness 24mm at 9F
• Radius : 305mmR

BODY DIMENSIONS

• a : Length 19 1/4"
• b : Width 15 3/4"
• c : Max Depth 2 5/8"

SWITCHING SYSTEM

CONTROLS


OTHER FEATURES

• Recommended Case MS100C

Features


Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.


Classic Elite pickups
The Classic Elite pickups offer rich, nuanced tone with fat low-end.


Quik Change III Tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
