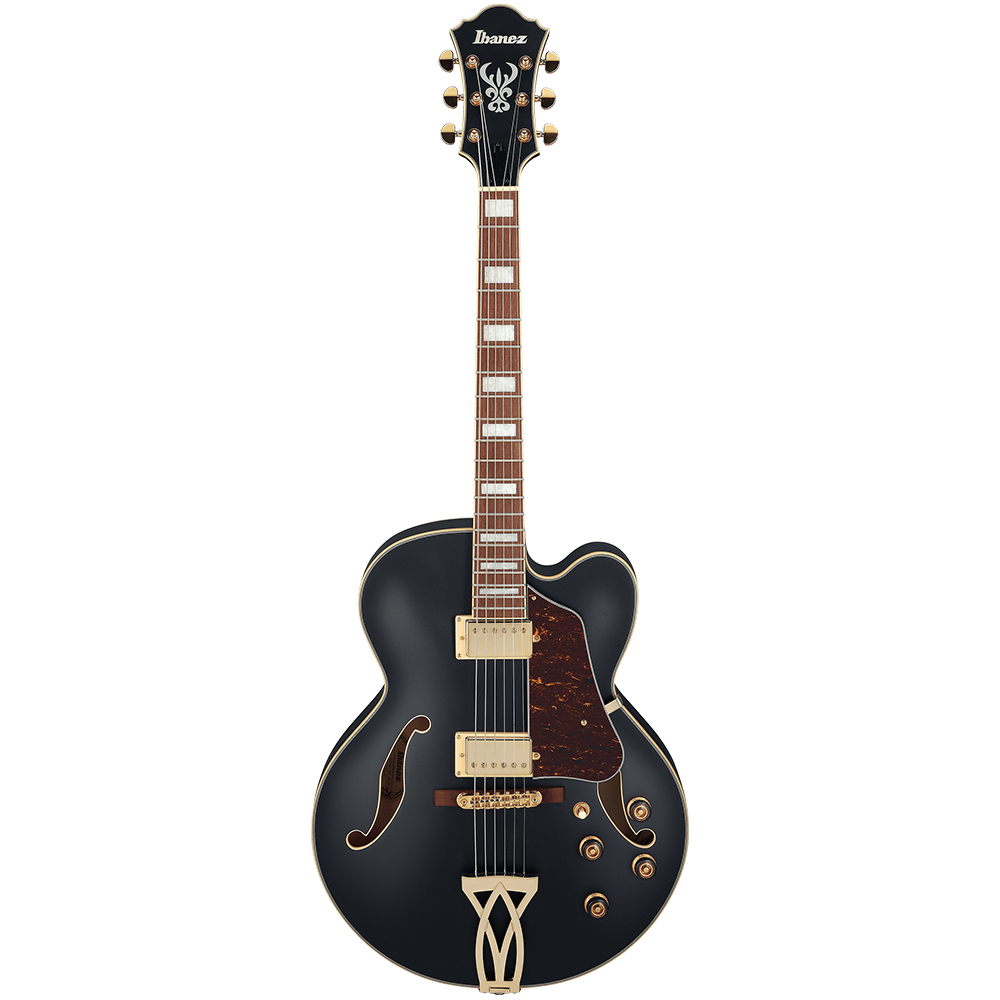

Ibanez AF Series AF75G BKF Electric Guitar

COLOR VARIATION：Black Flat

The AF is the most traditional design within the Artcore series. The full-hollow body construction means there are no sound blocks in the body. This construction method produces a rich, complex tone, expressed with a pure voice and full body, the tonal characteristics most highly desired among the discerning Jazz player.



SPECS

• neck type AF ArtcoreNyatohSet-in neck
• top/back/side Linden top Linden backLinden sides
• fretboard Bound Walnut fretboardAcrylic block inlay
• fret Medium frets
• number of frets 20
• bridge Gibraltar Performer bridge
• string space 10.5mm
• tailpiece VT60 tailpiece
• neck pickup Classic Elite (H) neck pickupPassive/Ceramic
• bridge pickup Classic Elite (H) bridge pickupPassive/Ceramic
• factory tuning 1E,2B,3G,4D,5A,6E
• string gauge .010/.013/.017/.030/.042/.052
• hardware color Gold

NECK DIMENSIONS

• Scale : 628mm
• a : Width 43mm at NUT
• b : Width 56.3mm at 20F
• c : Thickness 21mm at 1F
• d : Thickness 24mm at 9F
• Radius : 305mmR

BODY DIMENSIONS

• a : Length 19 1/2"
• b : Width 15 3/4"
• c : Max Depth 3 5/8"

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MF100C
• Recommended Bag IHB541-BK

Features

VT60 tailpiece

The artistically-designed VT60 tailpiece provides both great tuning stability and rich sustain.

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Walnut fretboard

A Walnut fretboard features a well-balanced tonal character from low to high end.

Classic Elite pickups

The Classic Elite pickups offer rich, nuanced tone with fat low-end.
