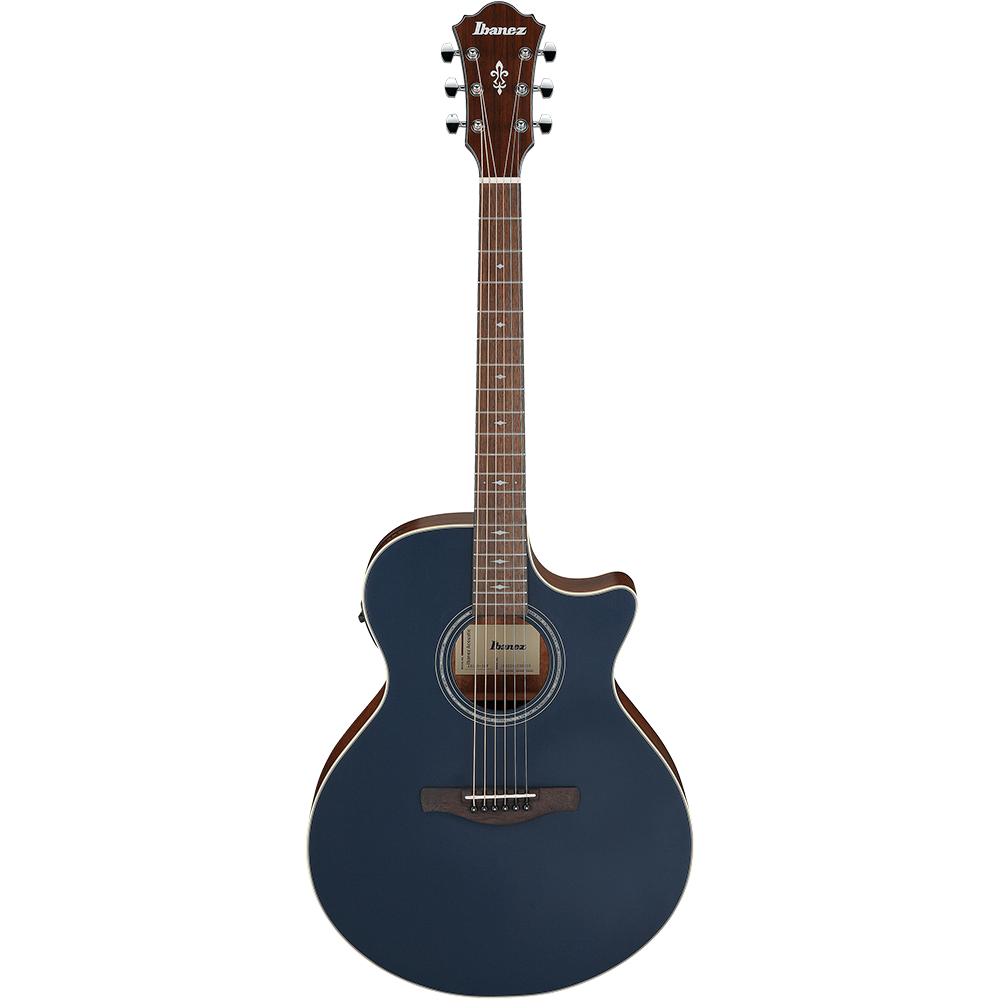

Ibanez AE Series AE100-DBF Semi Acoustic Guitar

COLOR VARIATION：Dark Tide Blue Flat

SPECS

• Body shape AE (Shallower body depth) body

• Bracing X-M Bracing

• Top Solid Sitka Spruce top

• Back & sides Okoume back & Okoume sides

• Neck Comfort Grip/Nyatoh neck

• Fretboard Laurel fretboard

• Bridge Laurel Scalloped bridge

• Inlay Specially designed inlay

• Soundhole rosette Abalone rosette

• Tuning machine Chrome Die-cast tuners (18:1 gear ratio)

• Number of frets 20

• Bridge pins Ibanez Advantage™

• Strings D'Addario® XTAPB1253

• String gauge .012/.016/.024/.032/.042/.053

• String space 11mm

• Factory tuning 1E,2B,3G,4D,5A,6E

• Pickup Ibanez T-bar Undersaddle

• Preamp Ibanez AEQ-TP2 preamp w/Onboard tuner

• Output jack Balanced XLR & 1/4" outputs

• Battery 9V x1

NECK DIMENSIONS

• Scale : 634mm/25"

• a : Width 43mm at NUT

• b : Width 54.33mm at 14F

• c : Thickness 20mm at 1F

• d : Thickness 21mm at 7F

• Radius : 400mmR

BODY DIMENSIONS

• a : Length 20 1/8"

• b : Width 16 1/4"

• c : Max Depth 4 1/2"

PREAMP

OTHER FEATURES

• Recommended Case FS40DA

• Recommended Bag IAB540-BK

• A.I.R.port

• A.I.R.port cover included

Features

A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Comfort Grip Nyatoh neck
The Comfort Grip Nyatoh Neck contour provides superior playability.

Laurel fretboard
The Laurel fretboard provides a rich and warm tone.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

Laurel Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
