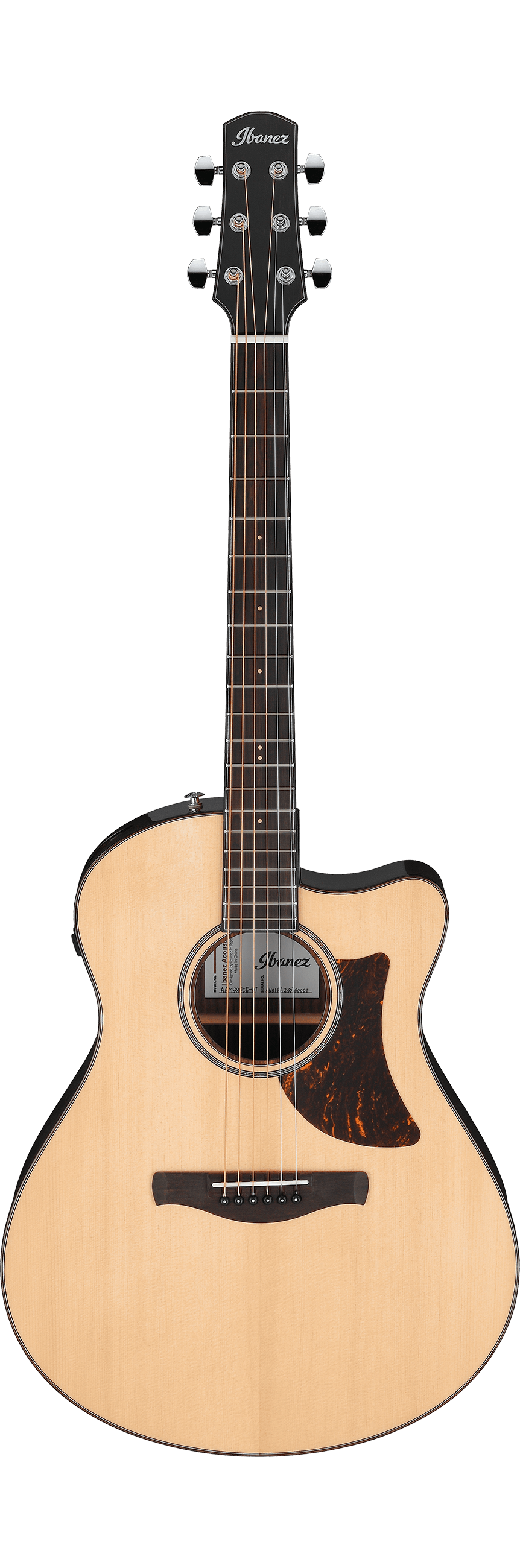

Ibanez AAM380CE-NT Semi Acoustic Guitar W/Cutaway Electronics

COLOR VARIATION：Natural High Gloss

SPECS

• Body shape Advanced Auditorium with Advanced Access Cutaway body

• Bracing X-M Bracing

• Top Solid Sitka Spruce top

• Back & sides Rosewood back & Rosewood sides

• Neck Low Oval Grip with Rounded Fretboard Edge/Thermo Aged™ African Mahogany neck

• Fretboard Macassar Ebony fretboard

• Bridge Macassar Ebony scalloped bridge

• Body binding Rosewood body binding with rounded body edge

• Top board purfling Wooden purfling

• Inlay Maple dot inlay

• Soundhole rosette Abalone and Wooden rosette with Soundhole binding

• Tuning machine Chrome Die-cast tuners (18:1 gear ratio)

• Nut material Bone

• Number of frets 20

• Saddle material Compensated Bone

• Bridge pins Ibanez Advantage™

• Strings D'Addario® XTAPB1253

• String gauge .012/.016/.024/.032/.042/.053

• String space 11mm

• Factory tuning 1E,2B,3G,4D,5A,6E

• Pickup Ibanez T-bar Undersaddle & Contact

• Preamp Ibanez Custom Electronics w/Undersaddle Pickup Volume and Contact Pickup Volume

• Output jack Dual Outputs (Mono Out / Stereo Out)

• Battery 9V x1

NECK DIMENSIONS

• Scale : 634mm/25"

• a : Width 43mm at NUT

• b : Width 55mm at 14F

• c : Thickness 21mm at 1F

• d : Thickness 22mm at 7F

• Radius : 400mmR

BODY DIMENSIONS

• a : Length 19 1/2"

• b : Width 15 3/8"

• c : Max Depth 4 3/16"

PREAMP

OTHER FEATURES

• Recommended Bag IAB540-BK

• A.I.R.port
• A.I.R.port cover

Features

A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Advanced Auditorium Body
With the concept of Advanced Acoustics - "Reimagining Acoustic Experience" in mind, we carefully designed the new body shape of the Advanced Auditorium, drawing on our research into the general Auditorium body shape. After many rounds of prototyping, the Advanced Auditorium body has a slightly wider waist, which has been moved slightly towards the neck. Thanks to these changes, this shape delivers a richer low mids and better body to weight balance, which conventional Auditorium bodies tend to lack.

X-M bracing for AAM series
After more than two years of trial and error, research, and prototyping, Ibanez developed its proprietary X-M bracing specifically for Advanced Auditorium guitar bodies to produce the ultimate sound for the stage and studio. The carefully designed scalloped X-M bracing, tone braces, and finger braces efficiently transmit string vibration from the bridge to the body. This bracing provides a wide dynamic range and excellent response. The mids are slightly scooped for better tonal balance, and the treble has the clarity of steel strings while retaining the warmth of nylon strings.

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Rosewood back and sides
Rosewood back and sides provide a well-balanced solid tone with a focused mid range.

Ibanez Custom Electronics w/Undersaddle Pickup Volume and Contact Pickup Volume
Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the two pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

Macassar Ebony Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Low Oval Grip Thermo Aged™ African Mahogany neck with Rounded Fretboard Edge
The Low Oval neck grip facilitates easy chord strumming and the Rounded Fretboard Edges deliver superior playability. Thermo Aging, a special drying process, makes the neck light and hard and provides excellent stability and enhanced resonance.

Advanced Access Cutaway
Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.

Low Oval Grip Thermo Aged™ African Mahogany neck with Rounded Fretboard Edge
The Low Oval neck grip facilitates easy chord strumming and the Rounded Fretboard Edges deliver superior playability. Thermo Aging, a special drying process, makes the neck light and hard and provides excellent stability and enhanced resonance.

Functional Tapered Headstock
The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

Luminlay side dot
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
