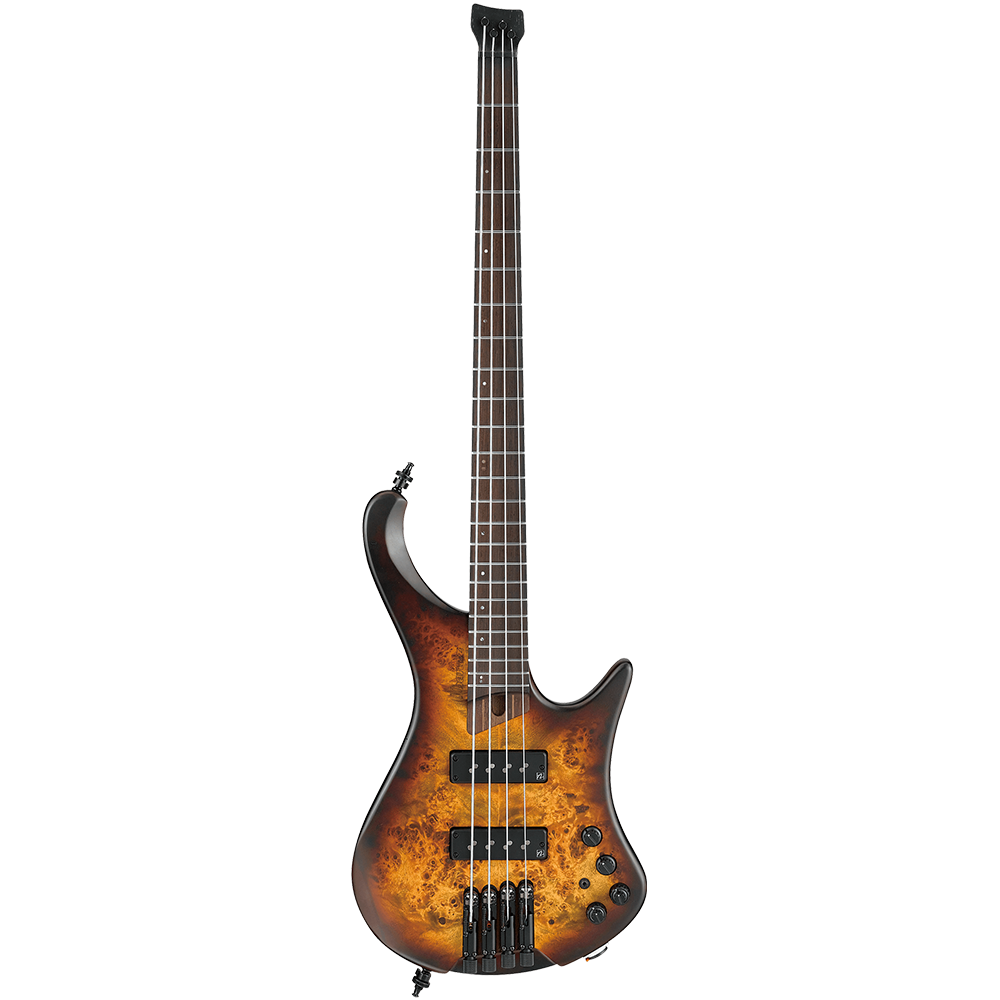

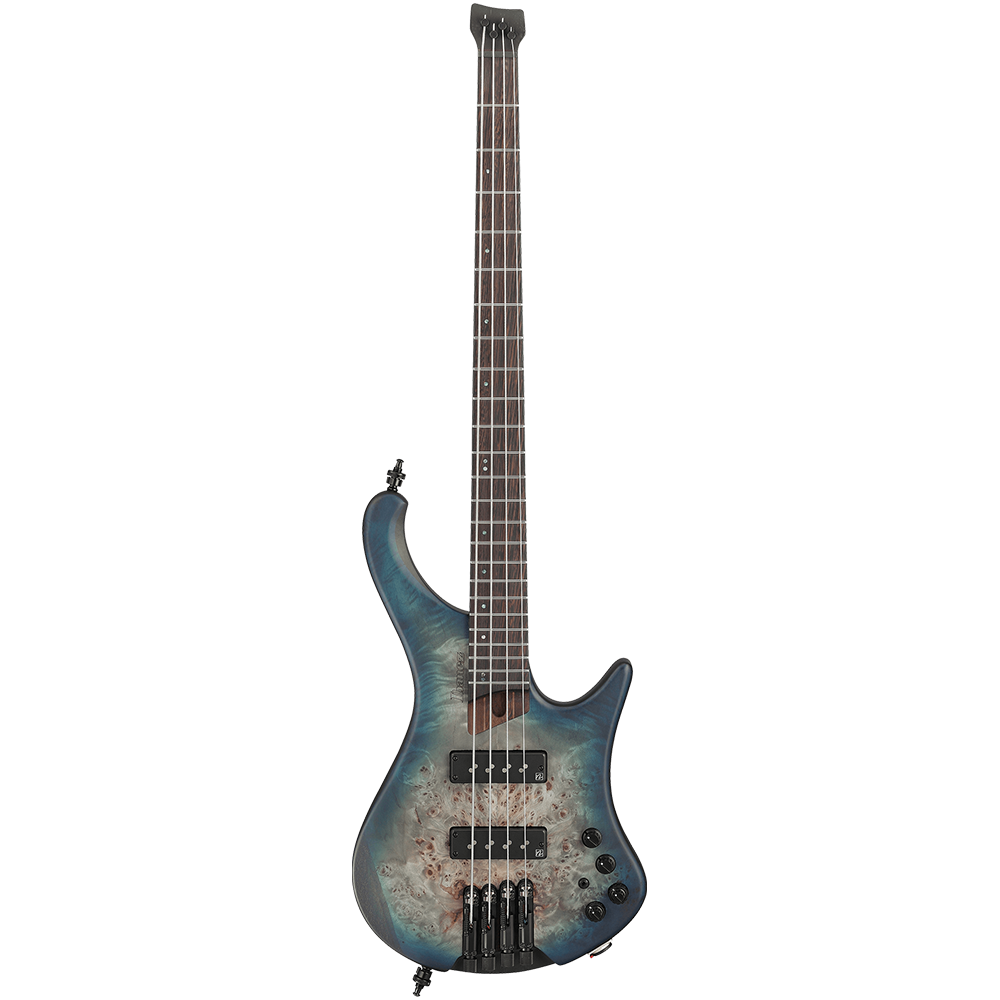

Ibanez EHB1500 Headless Bass Guitar EHB Series

SPEC

• neck type EHB49pc Pangapanga/Walnut neck w/Graphite reinforcement rods
• top/back/body Poplar Burl topSelected light weight African Mahogany body
• fretboard Bound Panga Panga fretboard Abalone off-set dot inlay
• fret Medium Stainless Steel frets
• number of frets 24
• bridge MR5HS bridge
• string space 19mm
• neck pickup Nordstrand Custom Big Split neck pickup(Passive)
• bridge pickup Nordstrand Custom Big Split bridge pickup(Passive)
• equaliser Vari-mid 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
• factory tuning 1G,2D,3A,4E
• strings D'Addario EXL165
• string gauge .045/.065/.085/.105
• hardware color Black

NECK DIMENSIONS

• Scale : 864mm/34"
• a : Width 41mm at NUT
• b : Width 64mm at 24F
• c : Thickness 19.5mm at 1F
• d : Thickness 21.5mm at 12F
• Radius : 500mmR

CONTROLS

FREQUENCY RESPONSE


OTHER FEATURES

• Recommennded Case MRB500C
• Gig bag included
• Luminescent side dot inlay
• Schaller S-Locks strap lock pins
• Ibanez custom headpieces

FEATURES


Ergonomic body design
The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.


Slanted body back
The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Ibanez custom headpieces
Rugged yet light-weight Ibanez custom headpieces enable strings to be easily set and released by a hex wrench from the back side.


Comfortably rounded body edge, Chambered body
Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.

Poplar Burl top and selected light weight African Mahogany body
A stunning Poplar Burl top and a selected light weight African Mahogany body provides a warm tone with rich resonance.


Scooped cut on the body back
There is extra carving on the back of the body behind the lower horn for easier upper fret access.


9pc Panga Panga/Walnut neck w/Graphite reinforcement rods
The 9-piece Panga Panga/Walnut neck provides superior note attack, tight lows and increased sustain with the Panga Panga fretboard.


Vari-Mid 3-Band EQ w/EQ bypass switch
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds. There is also an EQ bypass switch for passive operation with the treble control acting as a passive tone control when the EQ is bypassed.


MR5HS mono rail bridge w/string spacing adjustable saddles
The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.


Schaller S-Locks strap pins and Neutrik locking jack
Schaller S-Lock strap lock pins and a Neutrik locking jack hold the strap and cable securely.


Luminescent side dot inlays
Luminescent side dot inlay provides clear visibility in dark environments.
