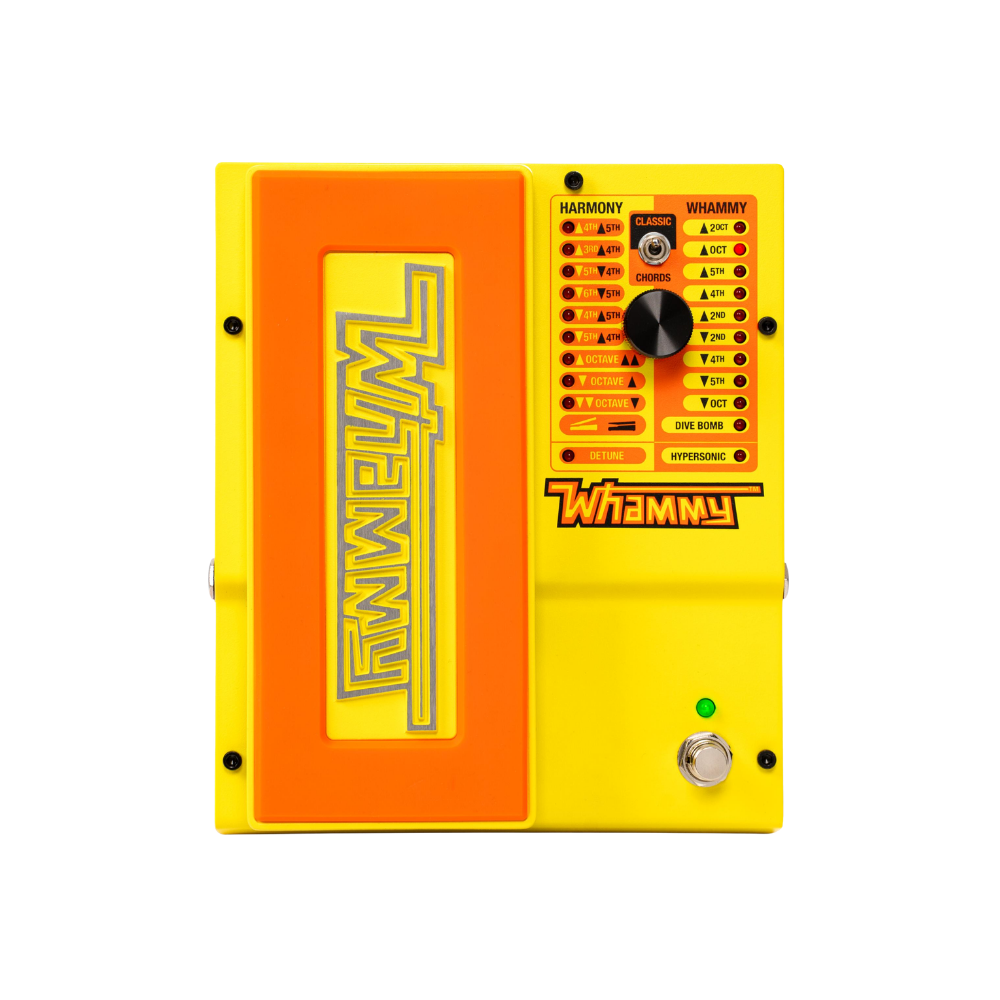

Digitech Whammy Mono Neon WHAMMY MNV-04

The MonoNeon Signature Whammy is DigiTech’s boldest and most expressive Whammy yet, created in collaboration with the sensational bass virtuoso MonoNeon. Packed with ground breaking features, it builds on the Whammy V while introducing the new Hypersonic Mode for a 3-octave pitch rise, an innovative Octave Blend, and the reimagined Detune for rich, otherworldly textures. With its vibrant design and cutting-edge capabilities, this Whammy redefines pitch-shifting and invites players into an entirely new sonic universe.

SPECIFICATIONS

Input / Output

• Instrument Input Type: Unbalanced ¼” TS phone jack

• Max Input Level: +5 dBu

• Input Impedance: 1 MΩ

• MIDI Input: 5-Pin DIN

• Output Type: Unbalanced ¼” TS phone jack

• Max Output Level: +10 dBu

• Output Impedance: 1 kΩ

Electronics

• Frequency Response: 20 Hz to 20 kHz

• Signal to Noise Ratio: >105 dB (A-weighted); ref = max level, 22 kHz bandwidth

• THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

• Sample Rate: 44.1 kHz

• A/D Conversion: 24-bit

• D/A Conversion: 24-bit

• Physical

• Dimensions: 6.5” (16.51cm) x 7.75” (19.68cm) x 2.5” (6.35cm) (WxDxH)

• Shipping Weight: 3.8 lbs. (1720g)

Power

• Power Consumption: 2.4 W (265 mA @ 9VDC)

• Power Requirements: 9 VDC External Adapter (center negative)

• Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative
