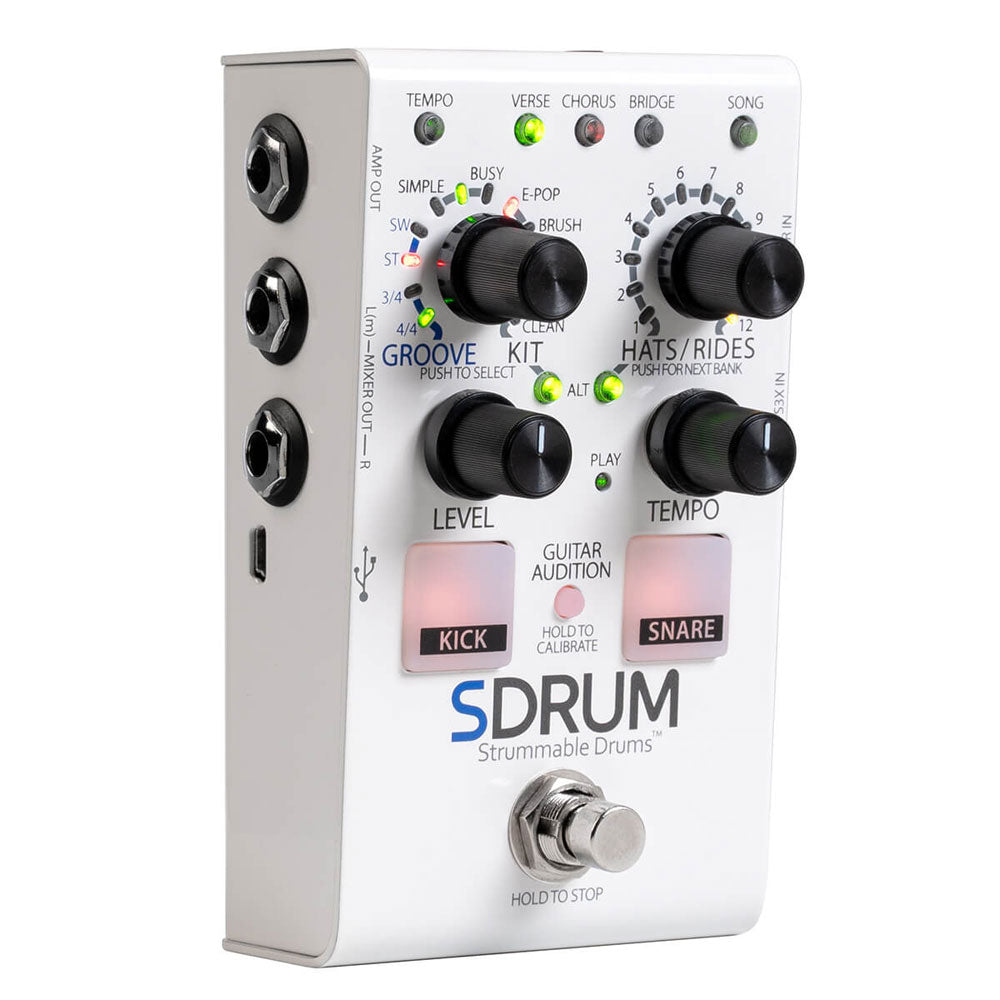

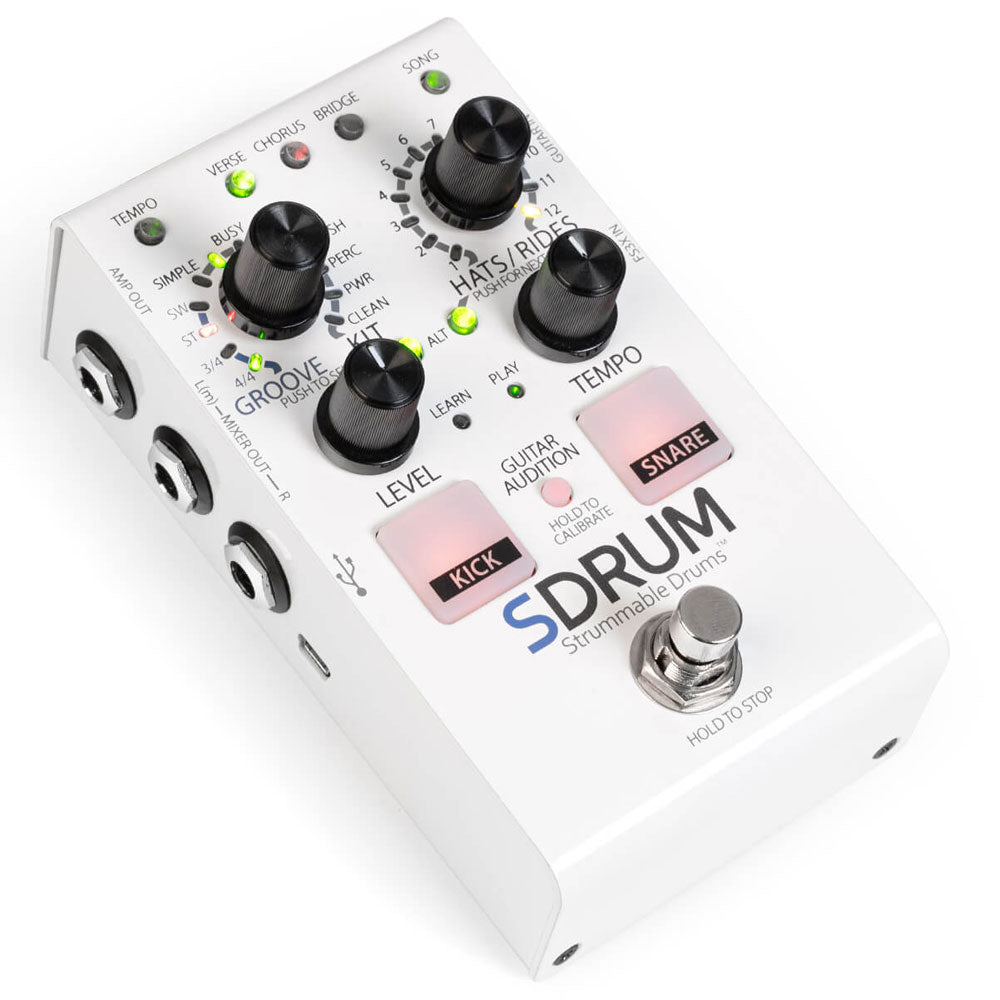

Digitech Strummable Drum Pedal SDRUM-V-04

SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want.

The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly for enhancing live performances and exploring song ideas.

SDRUM is the fastest way to go from a beat idea to a working drum track.

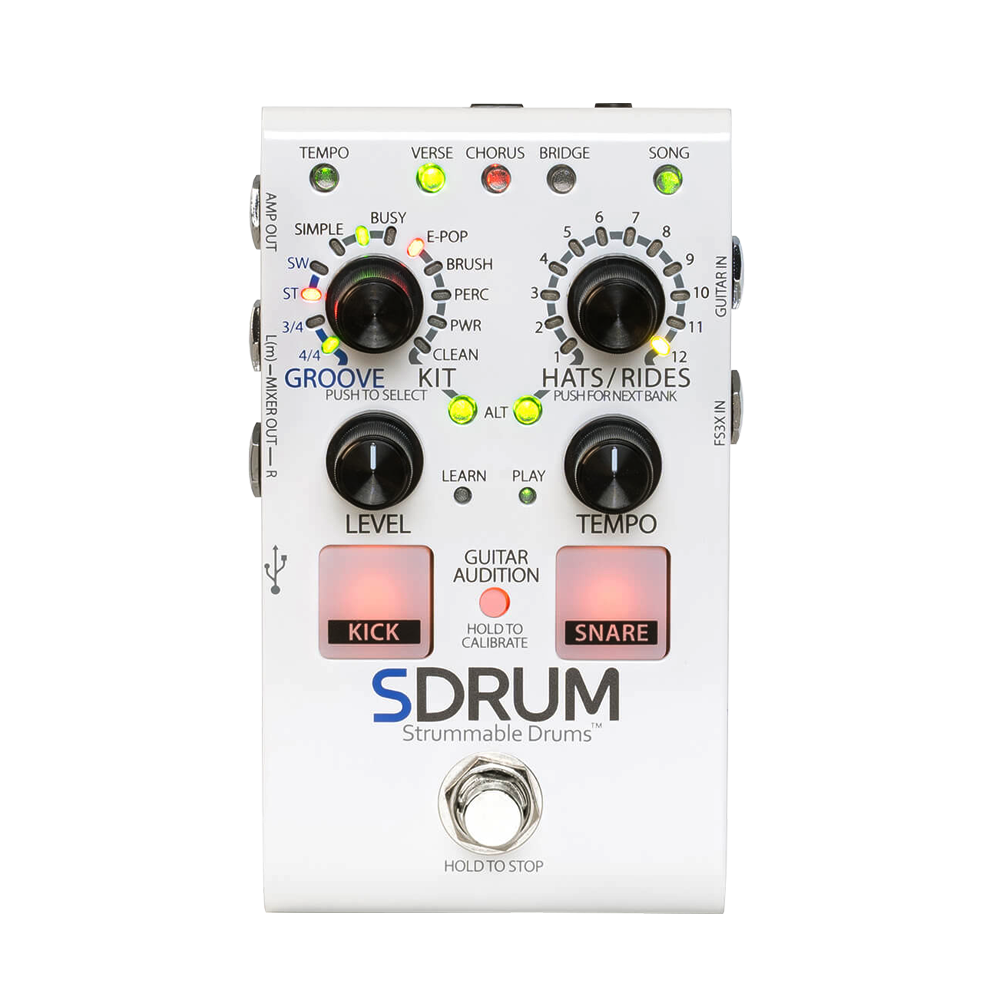

TEMPO Button
Tap to change the playback tempo. Flashes red and green to indicate beats of a bar. Hold to save a modified tempo.

Part Buttons
3 parts per song each with 3 different intensities for realistic transitions from Verse to Chorus to Bridge.

SONG Buttons
Access up to 36 songs by pressing this button and using the HATS/RIDES knob.

GROOVE/KIT Knob
Selects between 5 between kits. Also used to set amount of extra embellishments, timing and feel to drum patterns.

ALT Buttons
Select alternate instruments for Hats/Rides (including toms, shakers, tambourines) and alternate Kick and Snare drums.

HATS/RIDES Knob
Slects 12 different hats/rides styles. Pressing the knob switches between quarter, eigth and sixteenth note timings.

TEMPO Knob
Change the tempo from the stored (center detent) position.

GUITAR AUDITION Button
Turns on or off the drum output when strumming. Hold this button to calibrate your guitar or bass.

LEARN/PLAY LEDs
Show status of learning a part or playback

KICK/SNARE Pads
Audition kits and tap in beats using the kicks and SNARE pads.

Footswitch
Use to teach a pattern or start song playback. Tapping the switch during playback queues the next part. Holding the switch stops playback.

USB Port
Used for product updates.

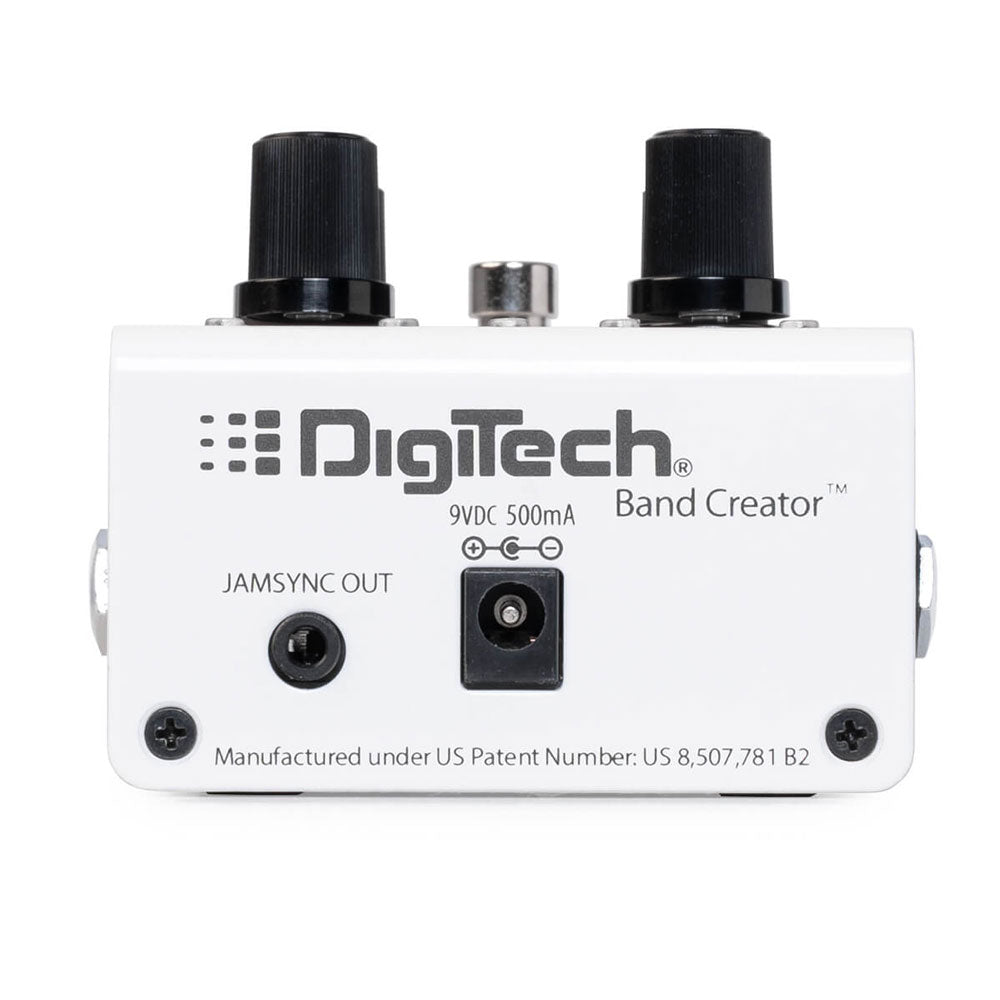

JamSync Output
Easily synchronics with JamSync enabled JamMan Looper pedals.

SPECIFICATIONS

• CONTROLS Groove/Kit, Hats/Rides, Level, Tempo

• BACKLIT BUTTONS Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition

• PADS Kick, Snare

• FOOTSWITCHES Main Footswitch

• LEDS Learn, Play

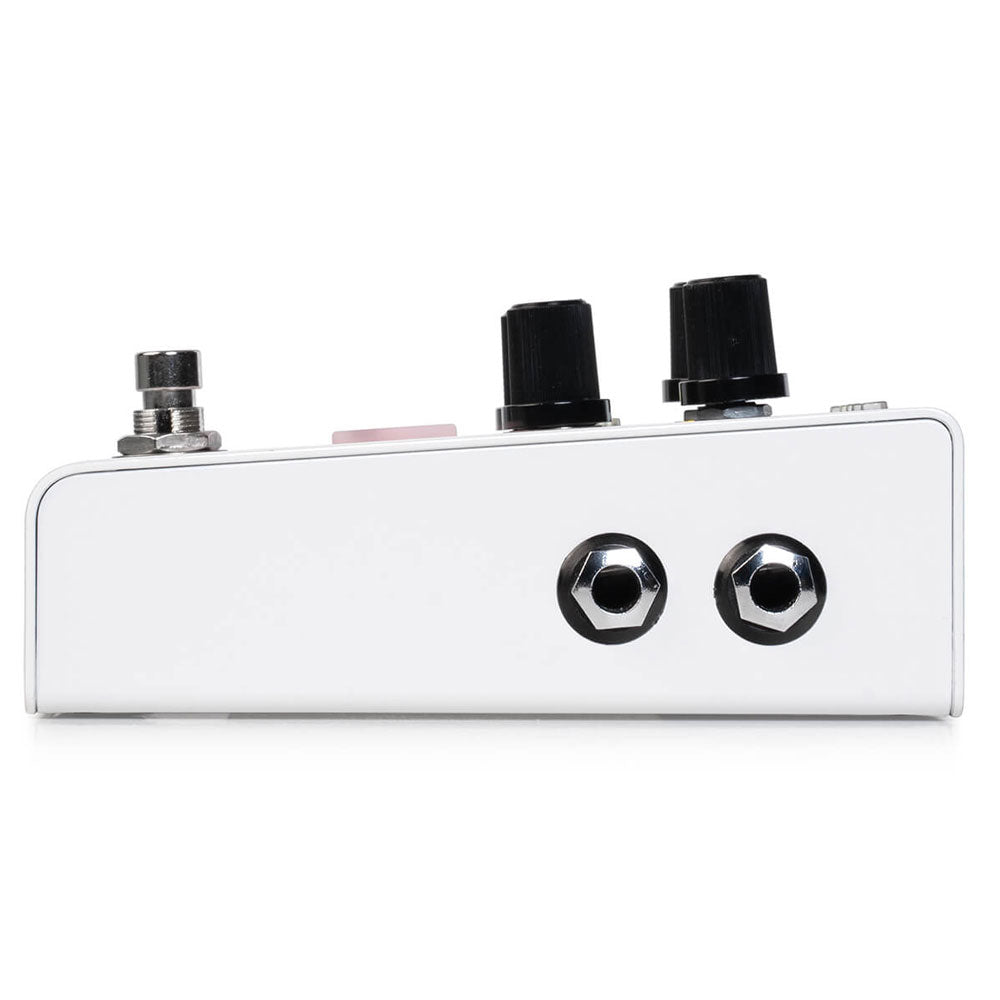

• JACKS Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out

• OTHER Mini USB port

Inputs

• GUITAR INPUT Type: Unbalanced, 1/4" TS / Impedance: 1 MΩ / Max Input: +8 dBu

• FS3X INPUT Type: 1/4" TRS (compatible with DigiTech FS3X)

Outputs

• AMP OUTPUT Type: Unbalanced, 1/4" TS / Impedance: 1 kΩ / Frequency Response: 20 Hz–20 kHz

• MIXER L/R OUTPUTS Type: Impedance balanced, 1/4" TRS / Impedance: 1 kΩ / Max Output: +19 dBu / Frequency Response: 20 Hz–20 kHz

• JAMSYNC OUTPUTS Type: 1/8" TRS Performance

• BIT DEPTH 24-bit

• SAMPLE RATE 44.1 kHz

• SIGNAL-TO-NOISE RATIO ≥108 dB, A-weighted

• THD + NOISE 0.004% @ 1 kHz

Storage

• MAXIMUM BARS 4 bars per song part

• MAXIMUM PARTS 3 per song

• MAXIMUM SONGS 36

USB

• TYPE Mini-B, USB 2.0

Physical

• DIMENSIONS 5.25” (L) x 3” (W) x 2.45” (H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)

• UNIT WEIGHT 1.14 lb / 0.52 kg

• SHIPPING WEIGHT 1.92 lb / 0.87 kg

Power

• POWER REQUIREMENTS 9 VDC external power adapter

• POWER CONSUMPTION <5 W

• CURRENT DRAW 500 mA

• POWER ADAPTER MODEL PS0913DC-04 (US, JA, EU, AU, UK)

• POWER ADAPTER OUTPUT 9 VDC 1.3 A
