Digitech Mosaic

Turn any 6-string guitar into a 12-string
Create a lush, shimmering chordal effect reminiscent of a 12-string guitar.

DigiTech Mosaic guitar pedal tone control

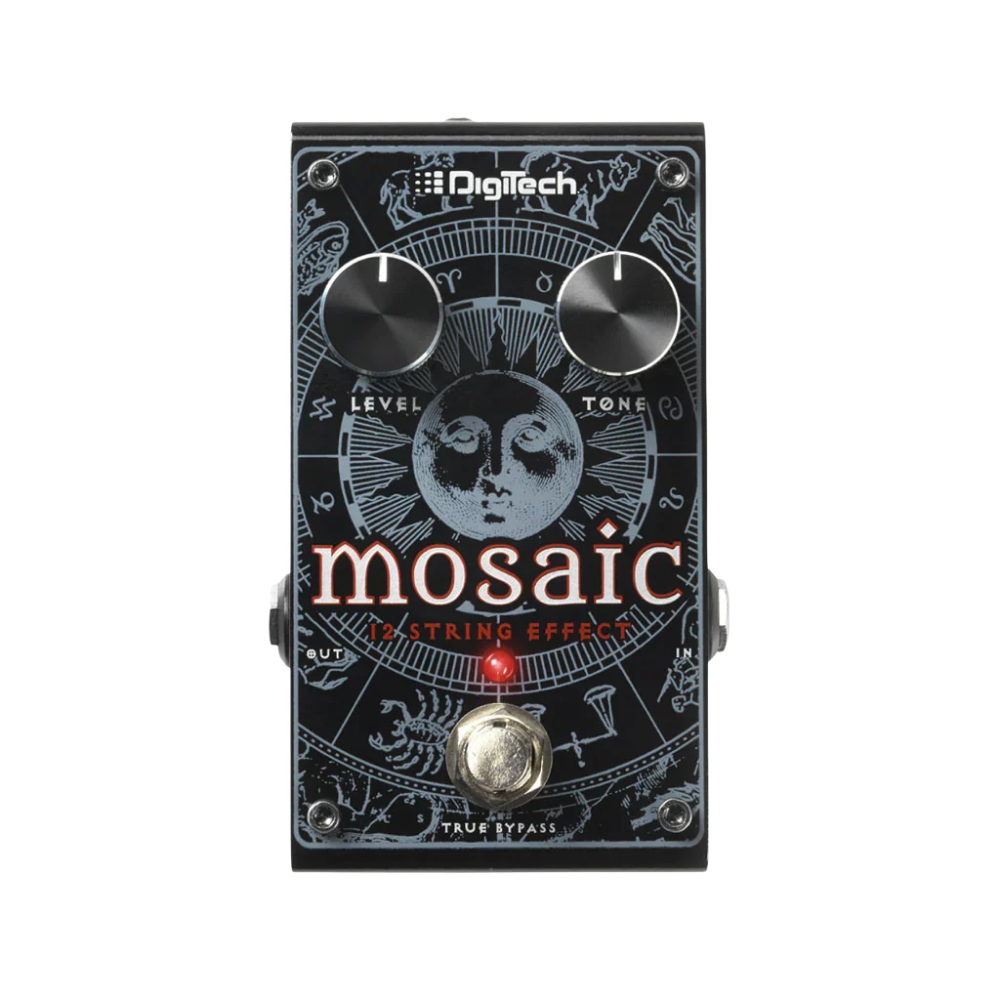

Digitech Mosaic polyphonic 12-string effect guitar pedal in black with gray graphics, blue background with graphics

Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you

Specifications

• SAMPLE RATE 44.1 kHz

• FREQUENCY RESPONSE 20 Hz-11 kHz (Effect Enabled)

• SIGNAL TO NOISE RATIO > -105 dB (A weighted); ref = max level, 22 kHz bandwidth

• THD 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

• A/D/A CONVERSION 24-bit

• INPUT 1/4" Unbalanced (Tip-Sleeve)

• OUTPUT 1/4" Unbalanced (Tip-Sleeve)

• CONTROLS Level, Tone

• TRUE BYPASS Yes. True bypass circuitry preserves your tone when the pedal is not in use.

Dimensions

• LENGTH 4.75" (120mm)

• HEIGHT 1.75" (44mm)

• WIDTH 2.875" (73mm)
  WEIGHT 0.36 lb. (163g)
