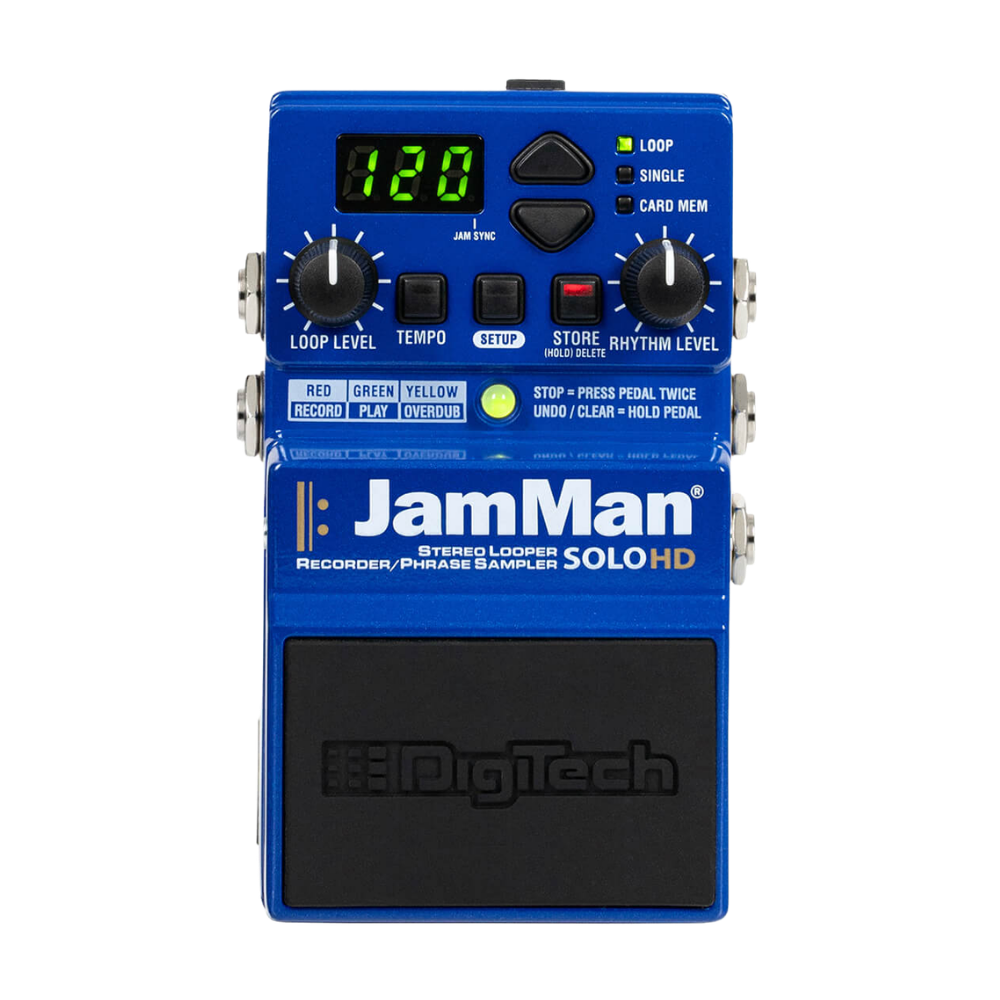

Digitech JamMan Solo HD JMSHDV-04

The JamMan Solo HD has all the same great features as the JamMan Solo XT including stereo looping, Micro SD/SDHC compatible memory card support, Auto Record, selectable Stop Modes, and the revolutionary JamSync feature which allows for syncing of multiple JamSync compatible devices. Even better, as its name suggests, the JamMan Solo HD features improved High-Definition audio performance with its Next-Gen HD A-D/D-A Audio Converter!

The JamMan Solo HD features 200 internal memory locations that can hold up to 35 minutes of loops. Installing a Micro SD/SDHC card into the memory card slot adds another 200 memory locations which can store over 32 hours of loops! (Compatible with Micro SD/SDHC cards up to 32Gb)

The JamMan Solo HD has USB connectivity for syncing to DigiTech’s free JamManager™ HD software. JamManager HD organizes and saves your loops to a computer (PC) and lets you quickly create JamLists to take to your gig. The JamMan Solo HD is the perfect stereo looper/phrase sampler for practicing, composing, and performing.

SPECIFICATIONS

DIGITAL

• A/D/A CONVERSION 24-bit

• SAMPLING FREQUENCY 44.1 kHz

• LOOP FILE FORMAT 44.1 kHz, 16-bit (stereo), uncompressed WAV file

• USB 2.0 High Speed (USB 1.1 compatible)

• CONNECTOR TYPE 5-Pin Mini B

• MAX. INDIVIDUAL LOOP TIME 10 minutes (stereo)

• INTERNAL MEMORY CAPACITY Over 35 minutes total loop time (up to 200 loops total)

• EXTERNAL MEMORY TYPE MicroSD/SDHC up to 32GB (optional)

• EXTERNAL MEMORY CAPACITY Over 32 hours (10.6MB/minute) of recording time,
• when using 16GB or larger MicroSDHC card (up to 200 loops total)

LEFT(MONO)/RIGHT INPUTS

• CONNECTOR TYPE 1/4” Unbalanced (Tip-Sleeve)

• INPUT IMPEDANCE 500 kΩ Mono/1 MΩ Stereo

• UNITY GAIN INPUT TO OUTPUT Loop Level knob set to 12 o’clock position

• MAX INPUT LEVEL AT UNITY +4 dBu DFS

• LEFT AND RIGHT AUDIO PATHS Each channel maintains analog dry path

AUX INPUT

• CONNECTOR TYPE 1/8” (3.5mm) Stereo (Tip-Ring-Sleeve)

• INPUT IMPEDANCE 1 MΩ

• MAXIMUM INPUT LEVEL +4 dBu DFS

• AUX IN AUDIO PATH Maintains analog dry path

• FOOTSWITCH INPUT

• CONNECTOR TYPE 1/4” Stereo (Tip-Ring-Sleeve), compatible with optional
• DigiTech® FS3X 3-button footswitch

LEFT(MONO)/RIGHT OUTPUTS

• CONNECTOR TYPE 1/4” Unbalanced (Tip-Sleeve)/Balanced (Tip-Ring-Sleeve)

• OUTPUT IMPEDANCE 100 Ω Unbalanced/ 200 Ω Balanced

• MAXIMUM OUTPUT LEVEL +4 dBu DFS

• PLAYBACK UNITY GAIN Loop Level knob set to 12 o’clock position

JAMSYNC INPUT/OUTPUT

• CONNECTOR TYPE 1/8” (3.5mm) (Tip-Ring-Sleeve)

PERFORMANCE

• FREQUENCY RESPONSE +0/-3 dB 20 Hz - 20 kHz

POWER REQUIREMENTS

• CONSUMPTION < 9 Watts

• CURRENT DRAW < 350 mA

POWER ADAPTER

• MODEL PS0920DC-01 (US, EU, UK, AU Plugs)

• INPUT 100-240 VAC, 50/60Hz

• OUTPUT 9 VDC 2.0 A

DIMENSIONS/WEIGHT

• DIMENSIONS 5” (L) x 3-1/8” (W) x 2-1/4” (H) / 127 mm (L) x 79.4 mm (W) x 57.2 mm (H)

• PRODUCT WEIGHT 0.75 lbs, 0.34 kg

• SHIPPING WEIGHT 1.6 lbs, 0.73 kg
