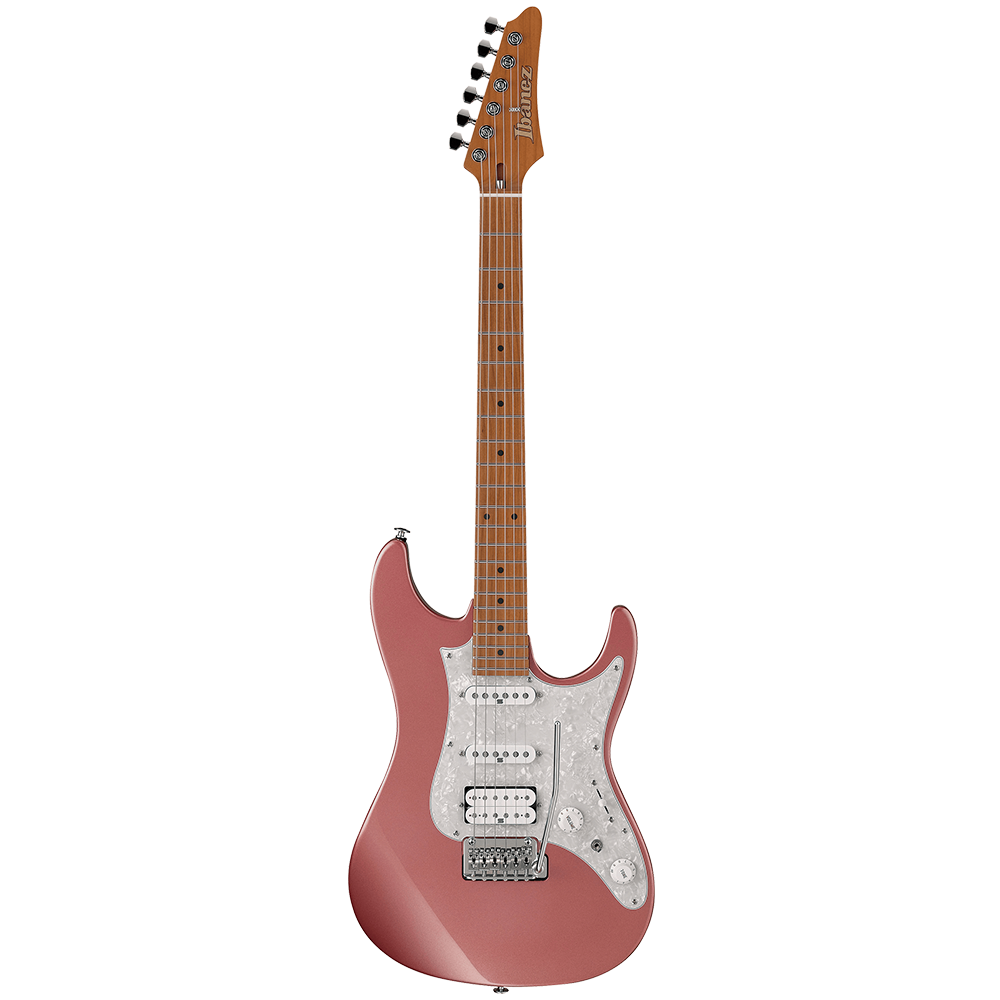

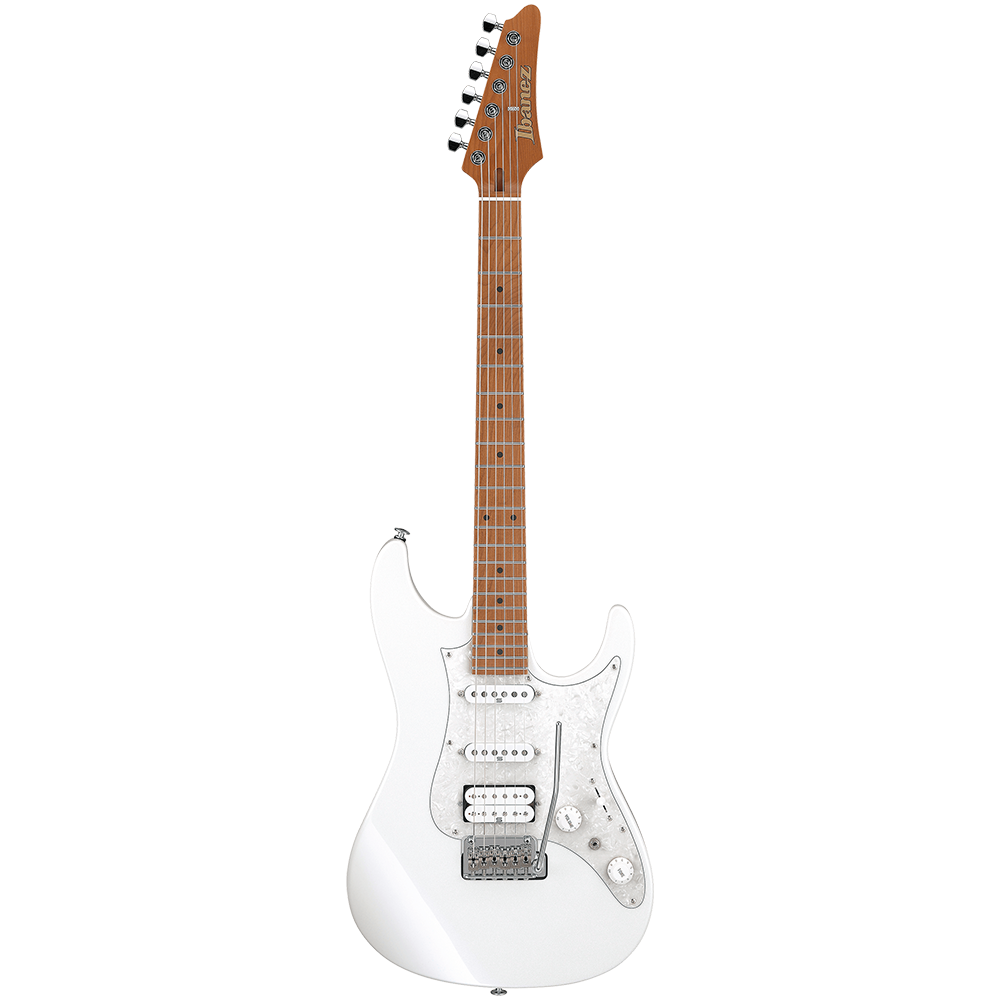

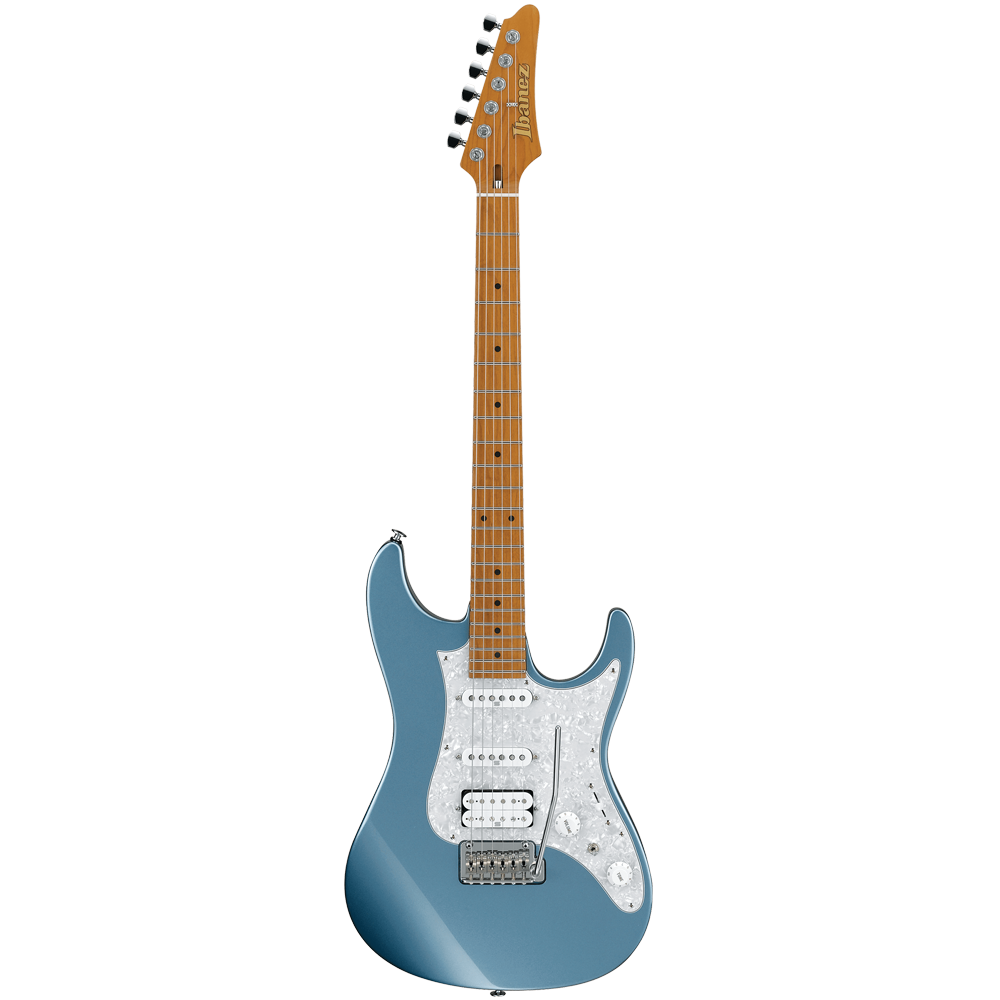

Ibanez AZ2204 Prestige Electric Guitar

Ibanez AZ2204 Prestige Electric Guitar

Regular price Rs. 175,350.00
Regular price Sale price Rs. 175,350.00
Sale Sold out
Color

Even though Ibanez is thought of as a modern guitar brand, we have decades of accumulated knowledge and a history of pushing the boundaries. The AZ series carries with it all of the hallmarks of these tried and tested Ibanez qualities: the smooth oval neck grip, the well balanced asymmetrical body shape, and the neck heel allowing unrivaled playability.

az2204-icm-1.png az2204-icm-2.png

SPEC

  • neck type AZ Oval C S-TECH WOOD  Roasted Maple neck
  • top/back/body Alder body
  • fretboard S-TECH WOOD Roasted MapleBlack dot inlay
  • fret Jumbo Stainless Steel frets
  • bridge Gotoh T1802 tremolo bridge
  • neck pickup Seymour Duncan Hyperion (S) neck pickupPassive/Alnico
  • middle pickup Seymour Duncan Hyperion (S) middle pickupPassive/Alnico
  • bridge pickup Seymour Duncan Hyperion (H) bridge pickupPassive/Alnico
  • nut Bone nut
  • hardware color Chrome
NECK DIMENSIONS


  • Scale : 648 mm/25.5"
  • a : Width 42mm at NUT
  • b : Width 56.4mm at 22F
  • c : Thickness 20.5mm at 1F
  • d : Thickness 22.5mm at 12F
  • Radius : 305mmR
SWITCHING SYSTEM


CONTROLS


OTHERS

  • dyna-MIX9 switching system w/Alter Switch
  • Luminlay side dot inlay
  • Gotoh MAGNUM LOCK machine heads w/H.A.P.
  • Hardshel l case included

FEATURES

AZ OVAL C S-TECH WOOD ROASTED MAPLE NECK

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

S-TECH WOOD ROASTED MAPLE FRETBOARD W/BLACK DOT INLAY

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

SEYMOUR DUNCAN HYPERION PICKUPS

Seymour Duncan Hyperion Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

DYNA-MIX 9 SWITCHING SYSTEM W/ALTER SWITCH

dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.

GOTOH T1802 TREMOLO BRIDGE

T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs.
The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.

OIL-IMPREGNATED BONE NUT /STAINLESS STEEL FRETS

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

LUMINLAY SIDE DOT INLAY

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

GOTOH MAGNUM LOCK MACHINE HEADS W/H.A.P.(HEIGHT ADJUSTABLE POST)

The AZ comes with GOTOH MAGNUM LOCK machine heads, which have an established reputation for tuning stability. Its H. A. P (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

SUPER ALL ACCESS NECK JOINT

The Super All Access Neck Joint offers superior playability with its 8mm concave curve from the body top to the spherical surface of the joint area. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.

AN ERGONOMIC BODY BACK CONTOUR

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
